LTL-1CHE - Through Hole Lamp

LITEON

📥 Download Datasheet

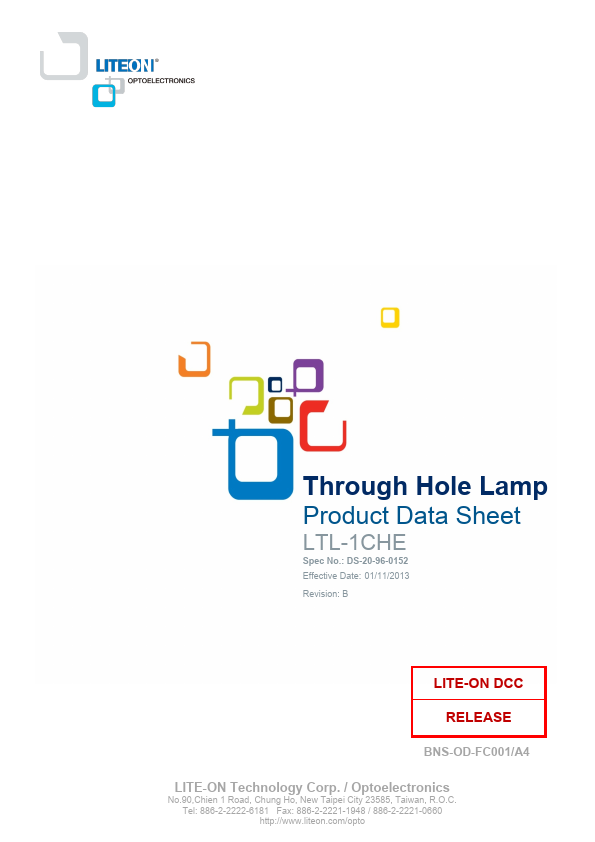

LTL-1CHE Datasheet Preview — Preview of LTL-1CHE PDF

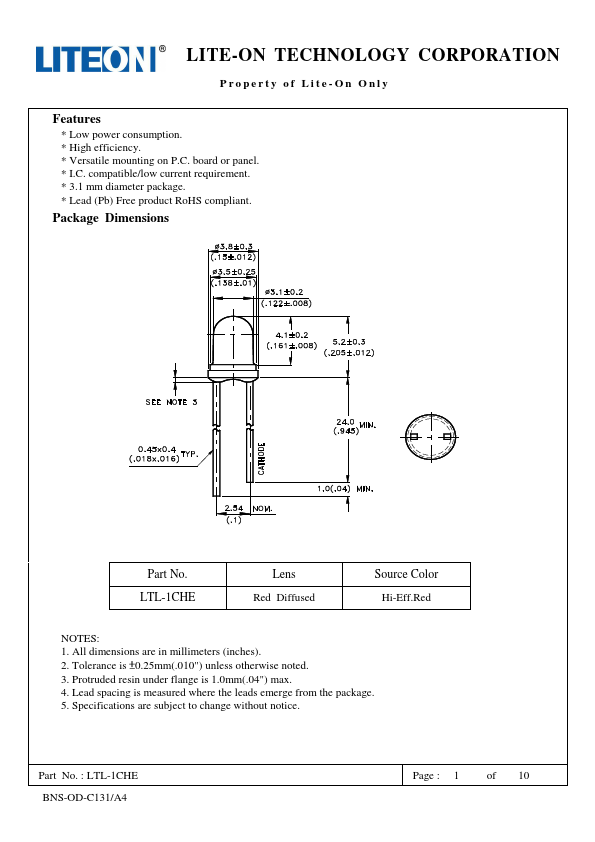

datasheet Preview Page 2

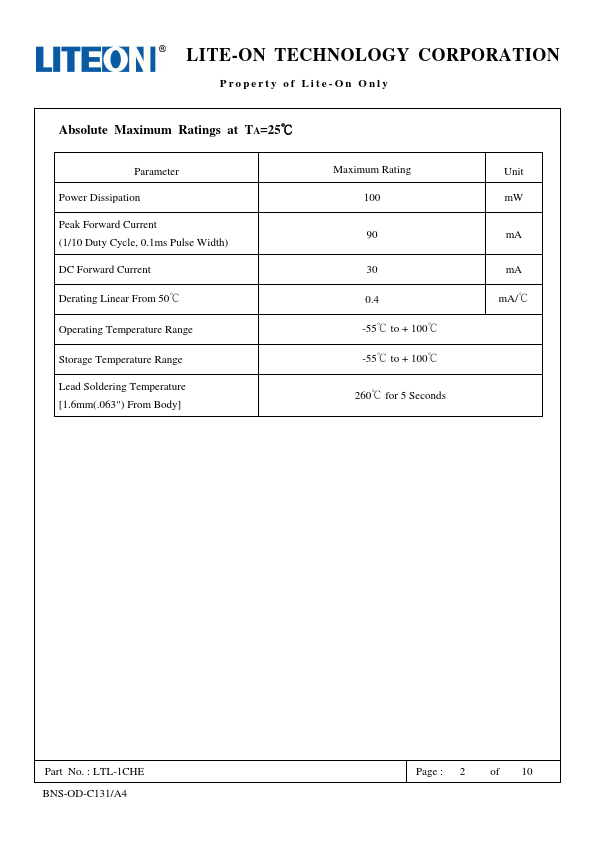

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1CHE
Manufacturer	LITEON
File Size	584.50 KB
Description	Through Hole Lamp
Datasheet	LTL-1CHE-LITEON.pdf

LTL-1CHE Product details

Features

Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. compatible/low current requirement.
3.1 mm diameter package.
Lead (Pb) Free product RoHS compliant. Package Dimensions Part No. LTL-1CHE Lens Red Diffused Source Color Hi-Eff. Red NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured wher.
