LTL-1CHGE-021 - Through Hole Lamp

LITEON

📥 Download Datasheet

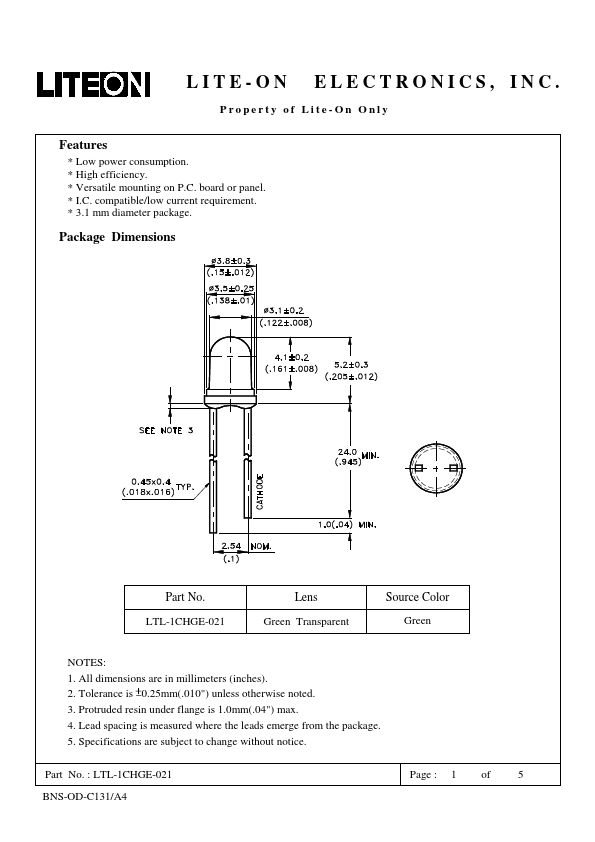

LTL-1CHGE-021 Datasheet Preview — Preview of LTL-1CHGE-021 PDF

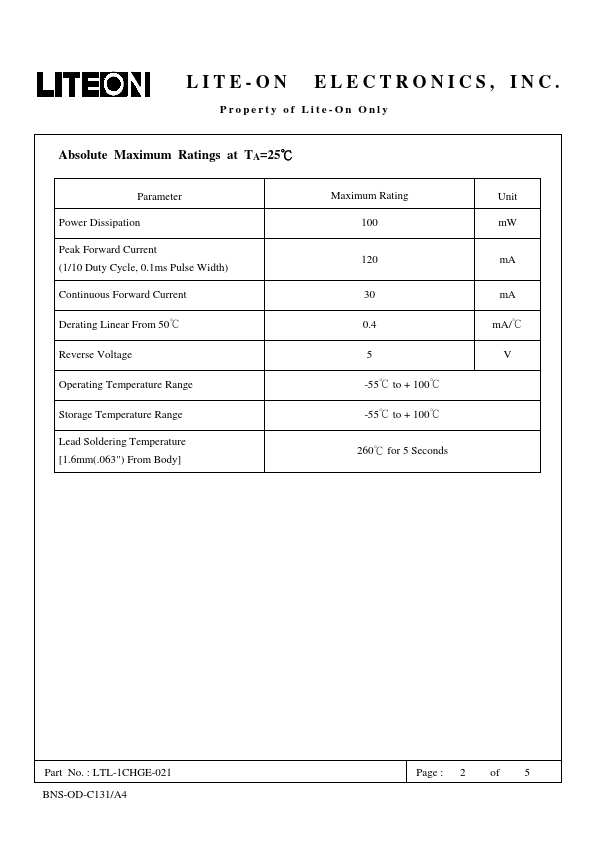

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTL-1CHGE-021
Manufacturer	LITEON
File Size	438.37 KB
Description	Through Hole Lamp
Datasheet	LTL-1CHGE-021-LITEON.pdf

LTL-1CHGE-021 Product details

Features

Low power consumption.
High efficiency.
Versatile mounting on P. C. board or panel.
I. C. compatible/low current requirement.
3.1 mm diameter package. Package Dimensions Part No. LTL-1CHGE-021 Lens Green Transparent Source Color Green NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5.
