LTL-42FRC5JH213T Datasheet - LITEON

LTL-42FRC5JH213T, Through Hole Lamp

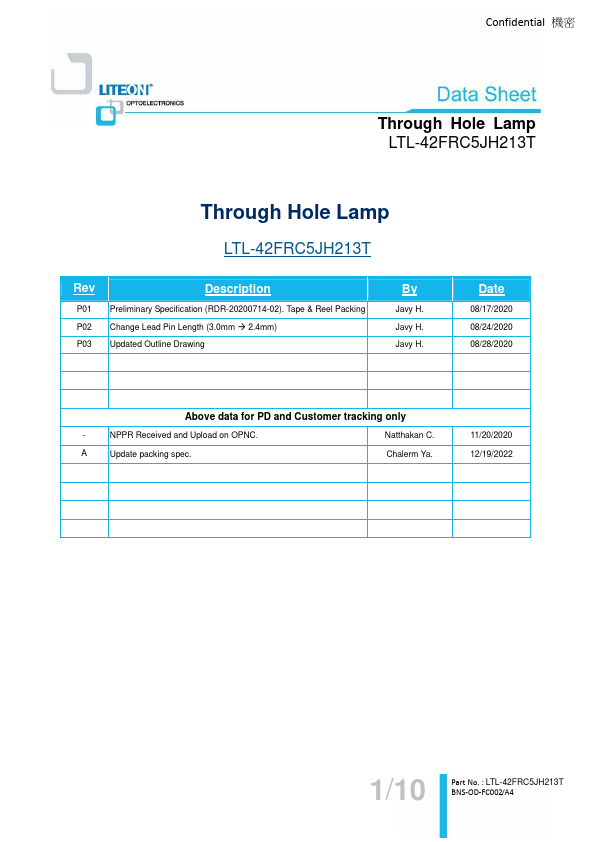

Through Hole Lamp Product Data Sheet LTL-42FRC5JH213T Spec No.:DS20-2020-0081 Effective Date: 12/30/2022 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001.
P01 Preliminary Specification (RDR-20200714-02).

datasheet Preview Page 1 from Datasheet4u.com

LTL-42FRC5JH213T-LITEON.pdf

LTL-42FRC5JH213T Datasheet Preview — Preview of LTL-42FRC5JH213T PDF

Datasheet Details

Part number:

LTL-42FRC5JH213T

Manufacturer:

LITEON

File Size:

363.23 KB

Description:

Through Hole Lamp

Features

* Designed for ease in circuit board assembly.
* Black case enhance contrast ratio.
* Solid state light source.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* Emitted color is AlInGaP red with white diffused Lens.
* It is in tape and re

Applications

* Computer
* Communication
* Consumer

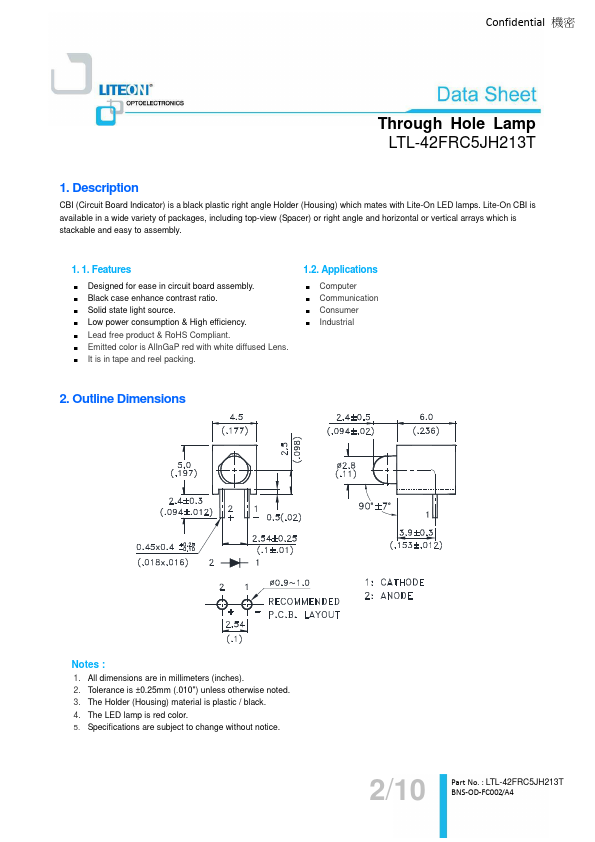

* Industrial 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic / black. 4. The LED lamp is red color. 5. Specificatio
