LTL-R42FGG1H214T Through Hole Lamp

📥 Download Datasheet  Datasheet Preview Page 1

Description

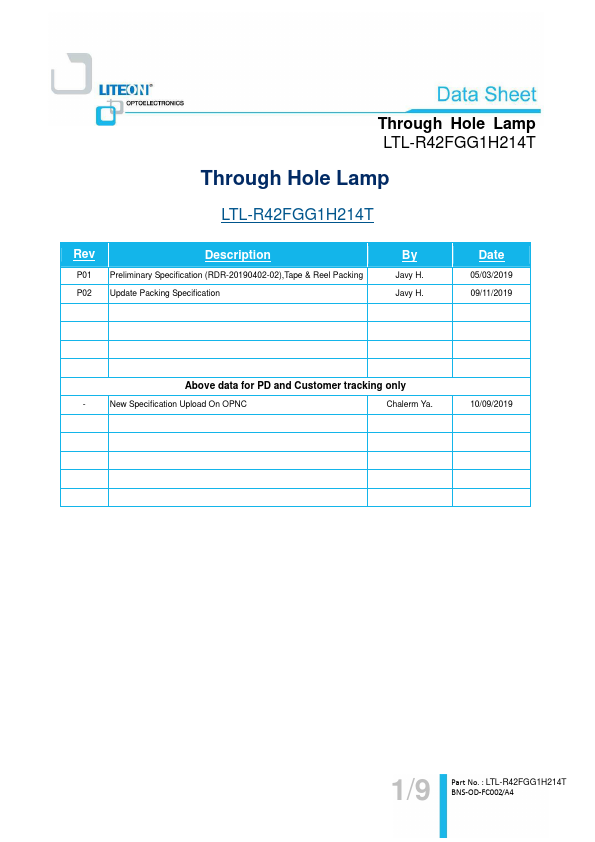

Through Hole Lamp Product Data Sheet LTL-R42FGG1H214T Spec No.:DS20-2019-0091 Effective Date: 12/21/2019 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001.
Preliminary Specification (RDR-20190402-02),Tape & Reel Packing Update Packing Specification By Javy H.

📥 Download Datasheet

Preview of LTL-R42FGG1H214T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTL-R42FGG1H214T
Manufacturer
LITEON
File Size
412.29 KB
Datasheet
LTL-R42FGG1H214T-LITEON.pdf
Description
Through Hole Lamp

Features

* Black case enhance contrast ratio.
* Green diffused lens.
* Low power consumption & High efficiency.
* Lead free product & RoHS Compliant.
* LED Source color is AlInGaP yellow green chip.

Applications

* Computer.
* Communication.
* Consumer.

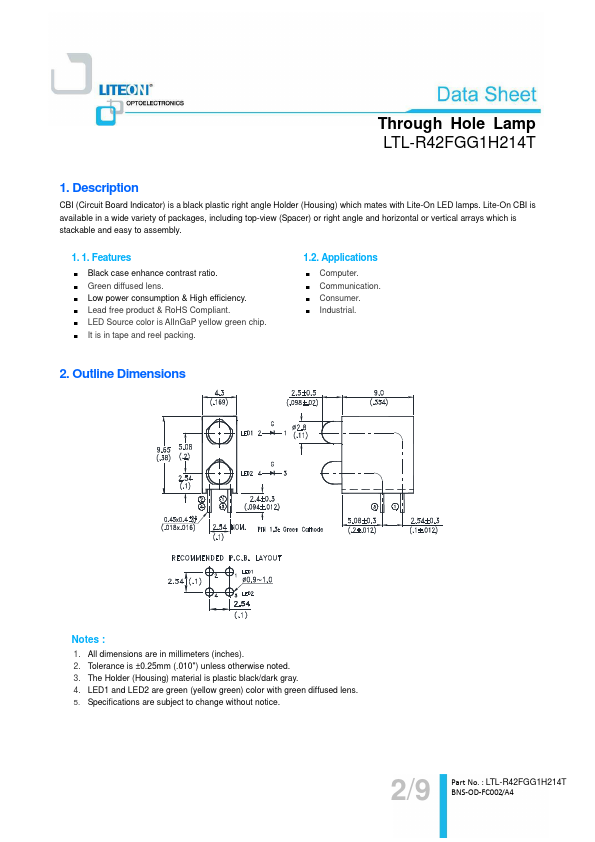

* Industrial. 2. Outline Dimensions Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. The Holder (Housing) material is plastic black/dark gray. 4. LED1 and LED2 are green (yello
