LTL1CHJSDNN-012A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL1CHJSDNN-012A Datasheet Preview — Preview of LTL1CHJSDNN-012A PDF

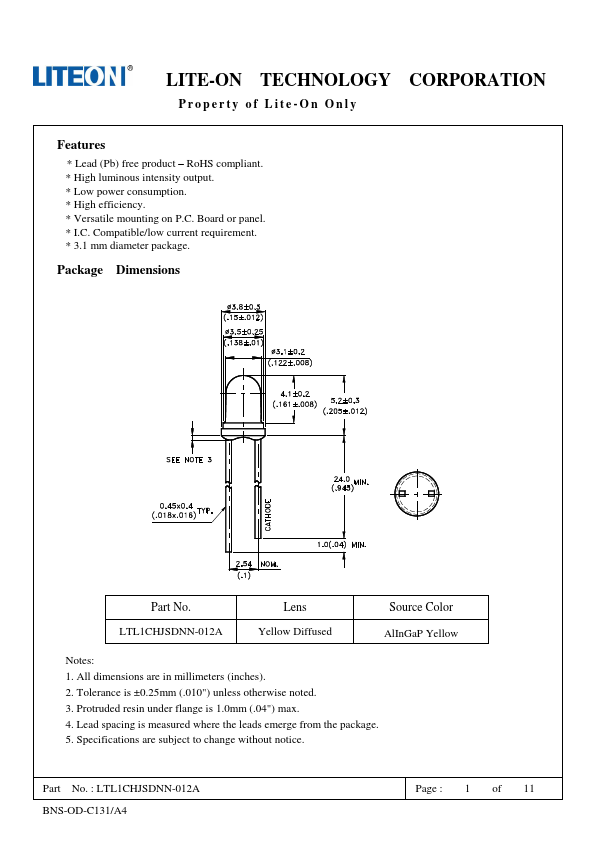

datasheet Preview Page 2

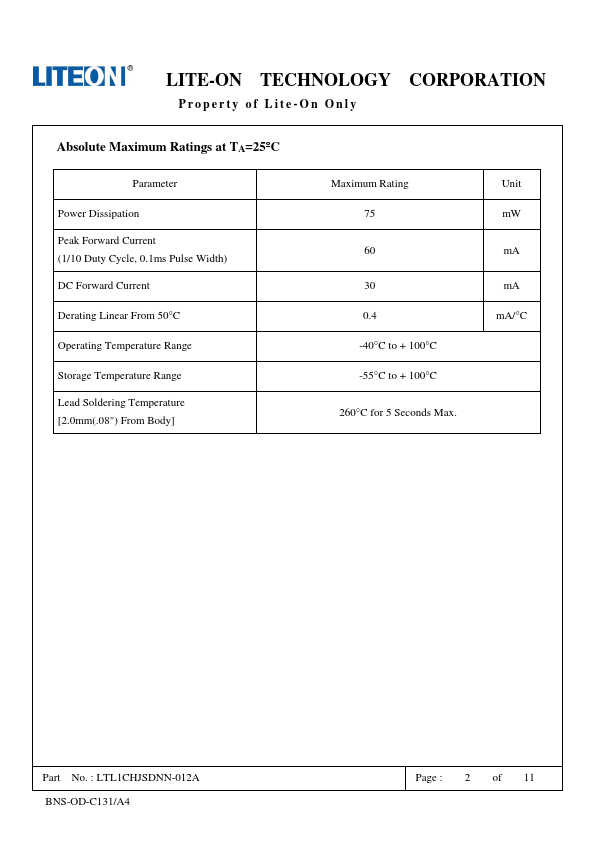

datasheet Preview Page 3

Datasheet Details

Part number	LTL1CHJSDNN-012A
Manufacturer	LITEON
File Size	488.51 KB
Description	Through Hole Lamp
Datasheet	LTL1CHJSDNN-012A-LITEON.pdf

LTL1CHJSDNN-012A Product details

Features

Lead (Pb) free product.
RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. Board or panel.
I. C. Compatible/low current requirement.
3.1 mm diameter package. Package Dimensions Part No. LTL1CHJSDNN-012A Lens Yellow Diffused Source Color AlInGaP Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin u.
