LTL1CHJSDNN - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL1CHJSDNN Datasheet Preview — Preview of LTL1CHJSDNN PDF

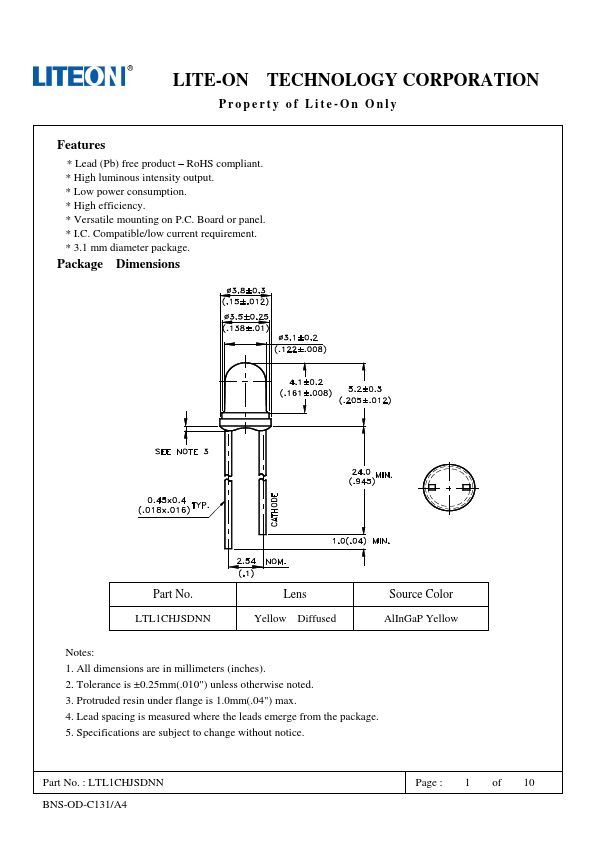

datasheet Preview Page 2

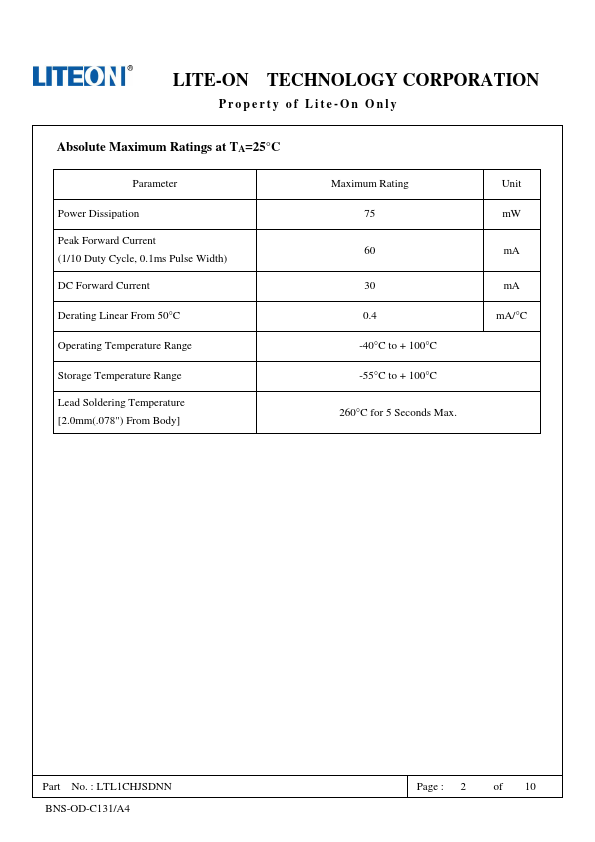

datasheet Preview Page 3

Datasheet Details

Part number	LTL1CHJSDNN
Manufacturer	LITEON
File Size	475.75 KB
Description	Through Hole Lamp
Datasheet	LTL1CHJSDNN-LITEON.pdf

LTL1CHJSDNN Product details

Features

Lead (Pb) free product.
RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. Board or panel.
I. C. Compatible/low current requirement.
3.1 mm diameter package. Package Dimensions Part No. LTL1CHJSDNN Lens Yellow Diffused Source Color AlInGaP Yellow Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under f.
