LTL1CHKEK-071A - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL1CHKEK-071A Datasheet Preview — Preview of LTL1CHKEK-071A PDF

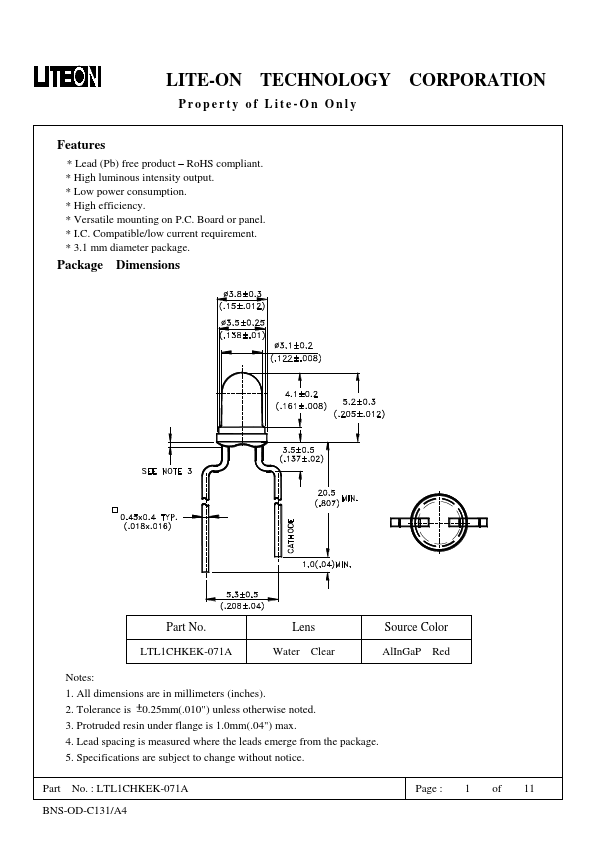

datasheet Preview Page 2

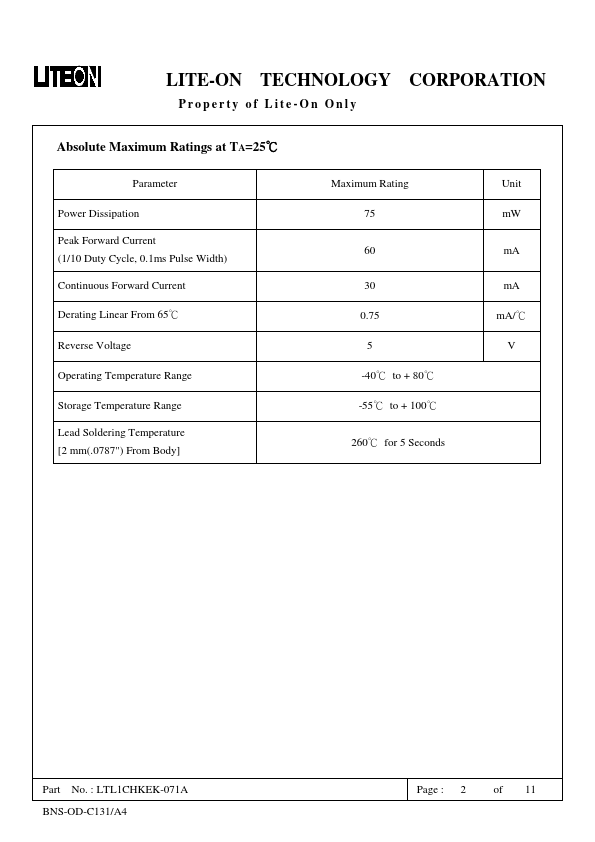

datasheet Preview Page 3

Datasheet Details

Part number	LTL1CHKEK-071A
Manufacturer	LITEON
File Size	524.55 KB
Description	Through Hole Lamp
Datasheet	LTL1CHKEK-071A-LITEON.pdf

LTL1CHKEK-071A Product details

Features

Lead (Pb) free product.
RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Versatile mounting on P. C. Board or panel.
I. C. Compatible/low current requirement.
3.1 mm diameter package. Package Dimensions Part No. Lens Source Color LTL1CHKEK-071A Water Clear AlInGaP Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under fl.
