LTV-50LP, LTV-50LW Datasheet - LITEON

LTV-50LP, LTV-50LW, Photocoupler

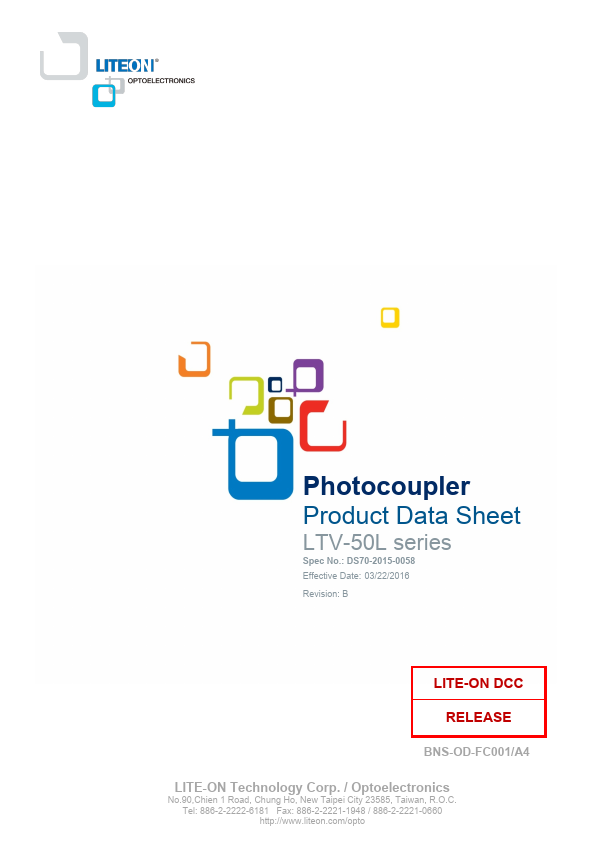

Photocoupler Product Data Sheet LTV-50L series Spec No.: DS70-2015-0058 Effective Date: 03/22/2016 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LIT.

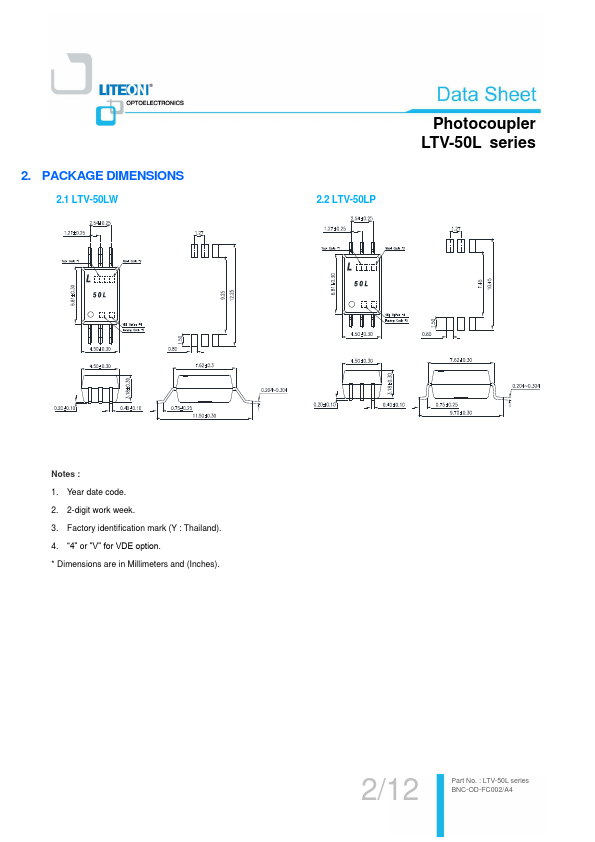

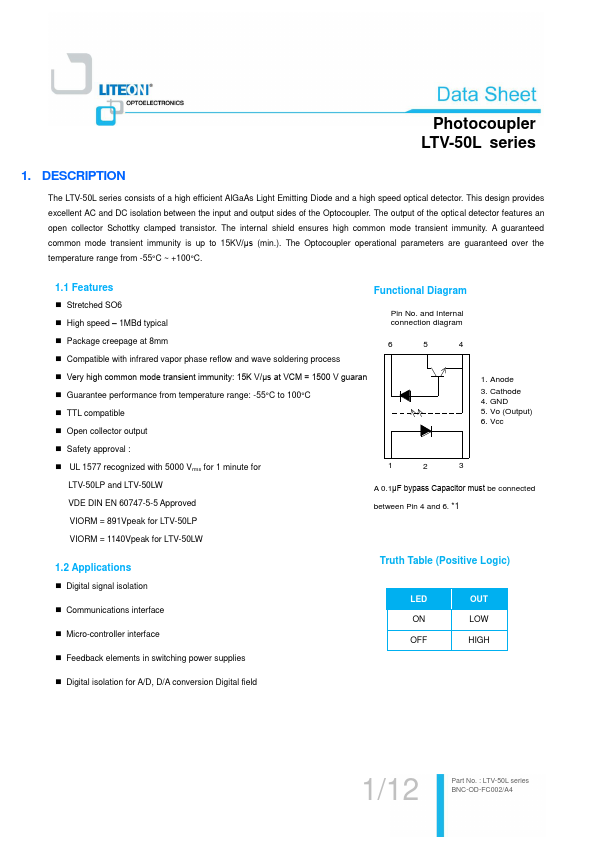

The LTV-50L series consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

datasheet Preview Page 1 from Datasheet4u.com

LTV-50LW-LITEON.pdf

LTV-50LP Datasheet Preview — This datasheet PDF includes multiple part numbers: LTV-50LP, LTV-50LW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTV-50LP, LTV-50LW

Manufacturer:

LITEON

File Size:

530.13 KB

Description:

Photocoupler

Note:

This datasheet PDF includes multiple part numbers: LTV-50LP, LTV-50LW.
Please refer to the document for exact specifications by model.

Features

* an open collector Schottky clamped transistor. The internal shield ensures high common mode transient immunity. A guaranteed common mode transient immunity is up to 15KV/μs (min. ). The Optocoupler operational parameters are guaranteed over the temperature range from -55°C ~ +100°C. 1.1 Features

Applications

* Digital signal isolation
* Communications interface
* Micro-controller interface
* Feedback elements in switching power supplies Truth Table (Positive Logic) A 0.1μF bypass Capacitor must be connected between Pin 5 and 8. See note 11. LED OUT ON LOW OFF HIGH
