LTV-8062 Photocoupler

LITEON

Description

Photocoupler Product Data Sheet LTV-8062 Spec No.:DS70-2017-0055 Effective Date: 05/17/2019 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
1. Isolation voltage between input and output Viso : 5,000 Vrms. 4pin DIP Zero-cross photocoupler, triac driver output. High.

📥 Download Datasheet

LTV-8062 Datasheet Preview — Preview of LTV-8062 PDF

Datasheet Specifications

Part number: LTV-8062
Manufacturer: LITEON
File Size: 466.39 KB
Datasheet: LTV-8062-LITEON.pdf
Description: Photocoupler

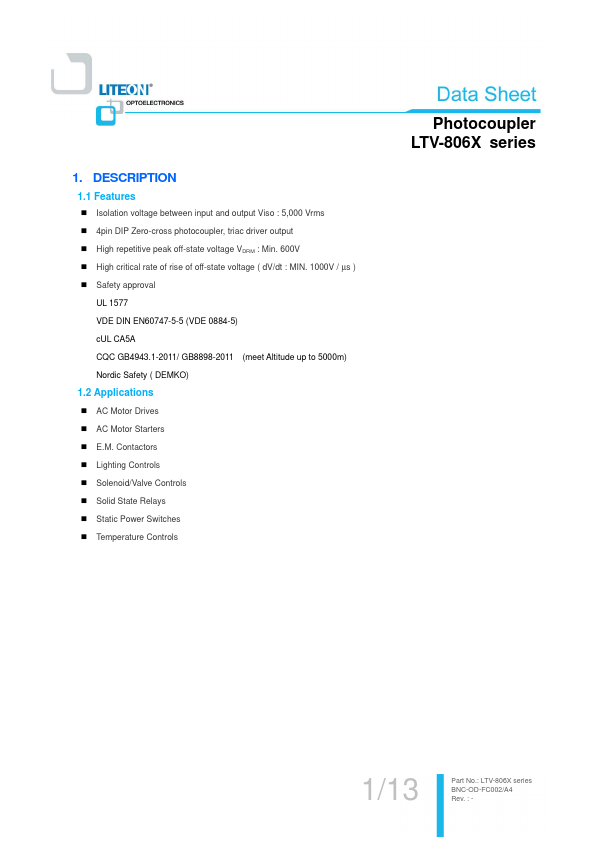

Features

* Isolation voltage between input and output Viso : 5,000 Vrms
* 4pin DIP Zero-cross photocoupler, triac driver output
* High repetitive peak off-state voltage VDRM : Min. 600V
* High critical rate of rise of off-state voltage ( dV/dt : MIN. 1000V / µs )
* Safety approval UL 1577

Applications

* AC Motor Drives
* AC Motor Starters
* E. M. Contactors
* Lighting Controls
* Solenoid/Valve Controls
* Solid State Relays
* Static Power Switches

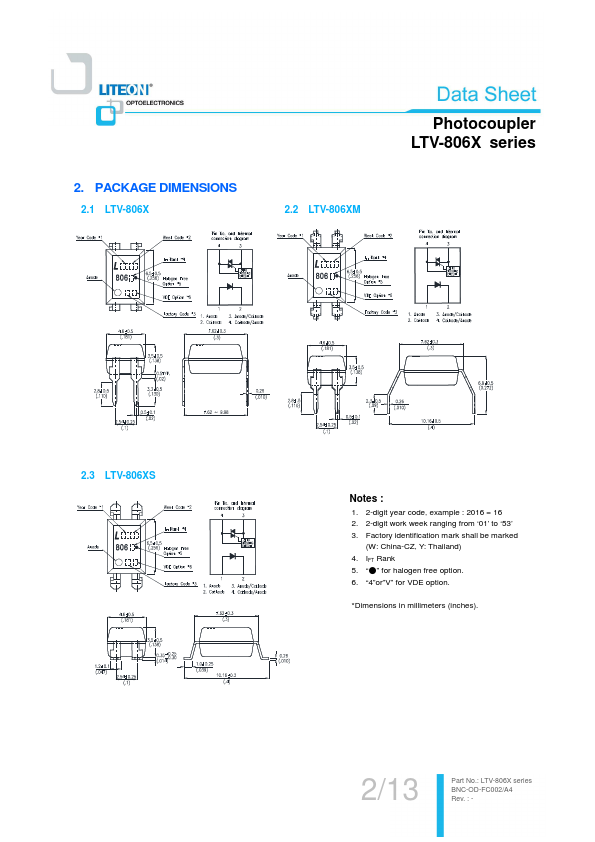

* Temperature Controls Photocoupler LTV-806X series 1/13 Part No. : LTV-806X series BNC-OD-FC002/A4 Rev. : - 2. PACKAG
