LF3330 - Vertical Digital Image Filter

Datasheet Summary

Description

The LF3330 filters digital images in the vertical dimension at real-time video rates.

The input and coefficient data are both 12 bits and in two’s complement format.

The output is also in two’s complement format and may be rounded to 16 bits.

Features

u 83 MHz Data Rate u 12-bit Data and Coefficients u On-board Memory for 256 Coefficient Sets u LF InterfaceTM Allows All 256 Coefficient Sets to be Updated Within Vertical Blanking u Selectable 16-bit Data Output with User-Defined Rounding and Limiting u Seven 3K x 12-bit, Programmable Two-Mode Line Buffers u Separate Input Port for Odd and Even Field Filtering u u u u u u 8 Filter Taps Cascadable for More Filter Taps Supports Interleaved Data Streams 3.3 Volt Power Supply 5 Volt Tolerant I/O 10.

Datasheet Details

Part number	LF3330
Manufacturer	LOGIC Devices Incorporated
File Size	138.45 KB
Description	Vertical Digital Image Filter
Datasheet	LF3330 Datasheet

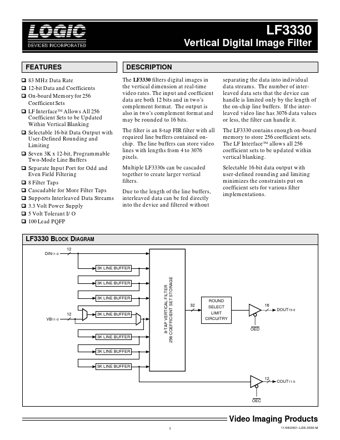

Additional preview pages of the LF3330 datasheet.

📁 Similar Datasheet

LF3311 - Horizontal - Vertical Digital Image Filter (LOGIC)

LF3312 - 12-Mbit Frame Buffer / FIFO (LOGIC Devices)

LF3321 - Horizontal Digital Image Filter (LOGIC Devices)

LF3324 - 24Mbit Frame Buffer/FIFO (LOGIC DEVICES)

LF33AB - Very low drop voltage regulator (STMicroelectronics)

LF33C - Very low drop voltage regulator (STMicroelectronics)

LF305-S - Current Transducer LF 305-S (LEM)

LF30AB - Very low drop voltage regulators (STMicroelectronics)

LF30C - Very low drop voltage regulators (STMicroelectronics)

LF30xRW - LF300RE Series / DC/DC Converters (MicroPower Direct)

Full PDF Text Transcription

Click to expand full text

LF3330 DEVICES INCORPORATED Vertical Digital Image Filter LF3330 DEVICES INCORPORATED Vertical Digital Image Filter DESCRIPTION The LF3330 filters digital images in the vertical dimension at real-time video rates. The input and coefficient data are both 12 bits and in two’s complement format. The output is also in two’s complement format and may be rounded to 16 bits. The filter is an 8-tap FIR filter with all required line buffers contained onchip. The line buffers can store video lines with lengths from 4 to 3076 pixels. Multiple LF3330s can be cascaded together to create larger vertical filters. Due to the length of the line buffers, interleaved data can be fed directly into the device and filtered without separating the data into individual data streams.
