LF3338 Datasheet, Filter, LOGIC Devices Incorporated

LF3338 Features

  • Filter u u u u u 83 MHz Data Rate 8-bit Data and 12-bit Coefficients Supports Interleaved Data Streams Cascadable for More Filter Taps Seven 3K x 8-bit, Dynamic Programmable Two-Mode Line Buff

PDF File Details

Part number:

LF3338

Manufacturer:

LOGIC Devices Incorporated

File Size:

303.85kb

Download:

📄 Datasheet

Description:

8-bit vertical digital image filter. The LF3338 is a lower cost version of the 12-bit LF3330 and is suited for multimedia and special effects systems, projectors, plasma

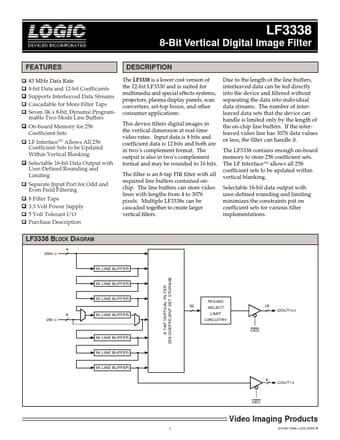

Datasheet Preview: LF3338 📥 Download PDF (303.85kb)
Page 2 of LF3338 Page 3 of LF3338

LF3338 Application

  • Applications This device filters digital images in the vertical dimension at real-time video rates. Input data is 8 bits and coefficient data is 12
