LF3321 Datasheet, Filter, LOGIC Devices

LF3321 Features

  • Filter 111 MHz Data Rate 12-bit Data or Coefficients (Expandable to 24-bit) 32-Tap FIR Filter, Cascadable for More Filter Taps LF Interfaceâ„¢ Allows All 256 Coefficient Sets to be Updated Withi

PDF File Details

Part number:

LF3321

Manufacturer:

LOGIC Devices

File Size:

1.04MB

Download:

📄 Datasheet

Description:

Horizontal digital image filter. The LF3321 is an improved version of the LF3320 Horizontal Digital Image Filter capable of operating at speeds of up to 111MHz. This

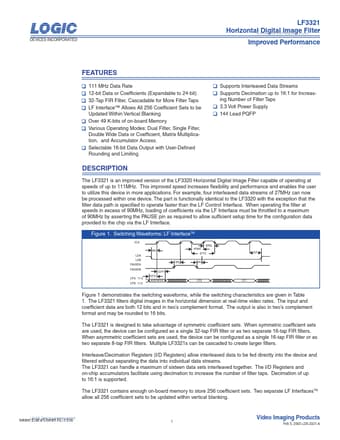

Datasheet Preview: LF3321 📥 Download PDF (1.04MB)
Page 2 of LF3321 Page 3 of LF3321

LF3321 Application

  • Applications For example, four interleaved data streams of 27MHz can now be processed within one device. The part is functionally identical to the
