LF48212

12 x 12-bit Alpha Mixer

LOGIC Devices Incorporated

LF48212 Features

* u 50 MHz Data and Computation Rate u Two’s Complement or Unsigned Operands u On-board Programmable Delay Stages u Programmable Output Rounding u Replaces Harris HSP48212 u Package Styles Available:

* 68-pin PLCC, J-Lead

* 64-pin PQFP LF48212 BLOCK DIAGRAM α11-0 12 DINA11-0 12 DINB11

LF48212 General Description

The LF48212 is a high-speed video alpha mixer capable of mixing video signals at real-time video rates. It takes two 12-bit video signals and mixes them together using an alpha mix factor. Alpha determines the weighting that each video signal receives during the mix operation. The input video data c.

LF48212 Datasheet (59.67 KB)

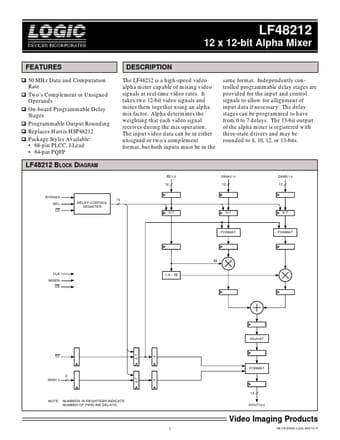

LF48212 Datasheet Preview — Preview of LF48212 PDF

Datasheet Details

Part number:

LF48212

Manufacturer:

LOGIC Devices Incorporated

File Size:

59.67 KB

Description:

12 x 12-bit alpha mixer.
