LF48410

1024 x 24-bit Video Histogrammer

LOGIC Devices Incorporated

LF48410 Features

* u 40 MHz Data Input and Computation Rate u 1024 x 24-bit Memory Array u Histograms of Images up to 4K x 4K with 10-bit Pixel Resolution u Memory Array Flash Clear u User-Programmable Modes: Histogram, Histogram Accumulate, Look Up Table, Bin Accumulate, Delay Memory, Delay and Subtract, Single Port

LF48410 General Description

The LF48410 is capable of generating histograms and Cumulative Distribution Functions of video images. It may also be used as a look up table, a bin accumulator, a delay memory (delay and subtract also possible), or a single port RAM. The on-chip 1024 x 24-bit memory array facilitates histograms of .

LF48410 Datasheet (302.67 KB)

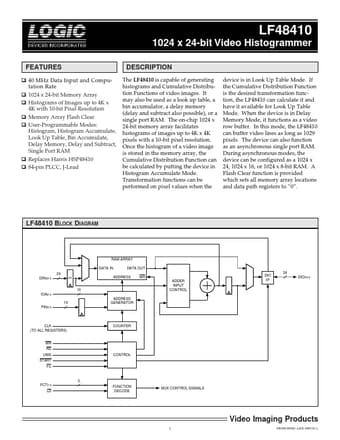

LF48410 Datasheet Preview — Preview of LF48410 PDF

Datasheet Details

Part number:

LF48410

Manufacturer:

LOGIC Devices Incorporated

File Size:

302.67 KB

Description:

1024 x 24-bit video histogrammer.
