LDTB113EET3G, LDTB113EET1G Bias Resistor Transistor

LRC

Description

LESHAN RADIO COMPANY, LTD.Bias Resistor Transistor PNP Silicon Surface Mount Transistor with Monolithic Bias Resistor Network LDTB113EET1G

📥 Download Datasheet

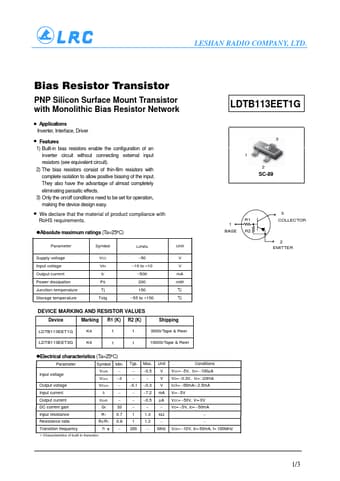

LDTB113EET3G Datasheet Preview — This datasheet PDF includes multiple part numbers: LDTB113EET3G, LDTB113EET1G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LDTB113EET3G, LDTB113EET1G
Manufacturer: LRC
File Size: 250.33 KB
Datasheet: LDTB113EET1G-LRC.pdf
Description: Bias Resistor Transistor
Note: This datasheet PDF includes multiple part numbers: LDTB113EET3G, LDTB113EET1G.
Please refer to the document for exact specifications by model.

Features

* 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost

Applications

* Inverter, Interface, Driver
