LDTB113ZET3G, LDTB113ZET1G - Bias Resistor Transistor

Name: LDTB113ZET3G
SKU: LDTB113ZET3G-934963

LRC

The LDTB113ZET3G by LRC is a Bias Resistor Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	LDTB113ZET3G, LDTB113ZET1G
Manufacturer	LRC
File Size	258.38 KB
Description	Bias Resistor Transistor
Datasheet	LDTB113ZET1G-LRC.pdf
Note	This datasheet PDF includes multiple part numbers: LDTB113ZET3G, LDTB113ZET1G. Please refer to the document for exact specifications by model.

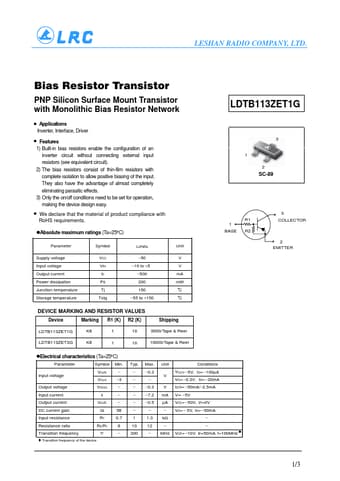

Additional preview pages of the LDTB113ZET3G datasheet.

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.
We declare that the material of product compliance wit.
