LDTB113ZWT1G - Bias Resistor Transistor

Name: LDTB113ZWT1G
SKU: LDTB113ZWT1G-935307

LRC

The LDTB113ZWT1G by LRC is a Bias Resistor Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	LDTB113ZWT1G
Manufacturer	LRC
File Size	285.16 KB
Description	Bias Resistor Transistor
Datasheet	LDTB113ZWT1G-LRC.pdf

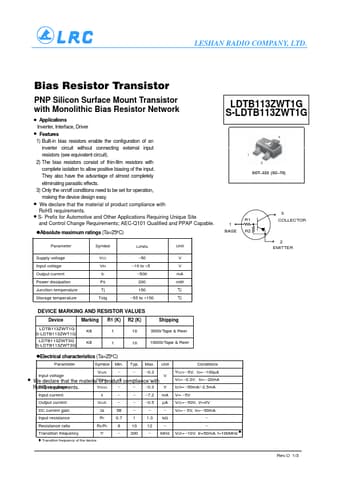

Additional preview pages of the LDTB113ZWT1G datasheet.

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy.
We declare that the material of product compliance wit.
