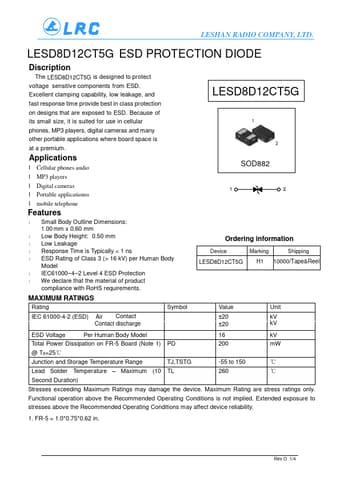

LESD8D12CT5G ESD PROTECTION DIODE

LESHAN RADIO COMPANY, LTD. LESD8D12CT5G ESD PROTECTION DIODE Discription The LESD8D12CT5G is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. Applications l Cellular phones.

LESD8D12CT5G Features

* l Small Body Outline Dimensions: 1.00 mm x 0.60 mm l Low Body Height: 0.50 mm l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000

* 4

* 2 Level 4 ESD Protection l We declare that the material of product compliance with RoHS
