LESD8D5.0CN3T5G ESD PROTECTION DIODE

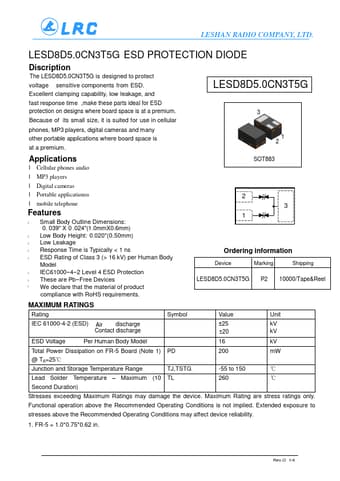

LESHAN RADIO COMPANY, LTD. LESD8D5.0CN3T5G ESD PROTECTION DIODE Discription The LESD8D5.0CN3T5G is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time ,make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. LESD8D5.0CN3T5.

LESD8D5.0CN3T5G Features

* l Small Body Outline Dimensions: 0. 039" X 0 .024"(1.0mmX0.6mm) l Low Body Height: 0.020"(0.50mm) l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000

* 4

* 2 Level 4 ESD Protection l These are Pb

* Free Devices l We de

LESD8D5.0CN3T5G Datasheet (187.66 KB)
