LESD8D7.0CAT5G

Transient Voltage Suppressors

LESD8D7.0CAT5G Features

* Small Body Outline Dimensions Low Body Height Peak Power up to 80 Watts @ 8 x 20 μs Pulse Low Leakage Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model IEC61000

* 4

* 2 Level 4 ESD Protection IEC61000

* 4

* 4 Level 4 EFT Protection We decl

LESD8D7.0CAT5G General Description

The LESD8D7.0CAT5G is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications Cellular phones Porta.

LESD8D7.0CAT5G Datasheet (220.77 KB)

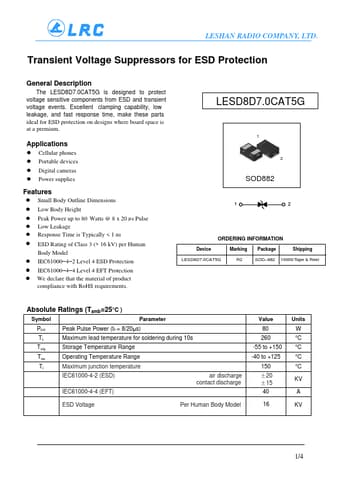

Preview of LESD8D7.0CAT5G PDF

Datasheet Details

Part number:

LESD8D7.0CAT5G

Manufacturer:

LRC

File Size:

220.77 KB

Description:

Transient voltage suppressors.
