LR324 - High gain and internally frequency compensated operational amplifiers

LR324 Description

LESHAN RADIO COMPANY, LTD.General .
The LR324 consists of four independent, high gain and internally frequency compensated operational amplifiers.

LR324 Applications

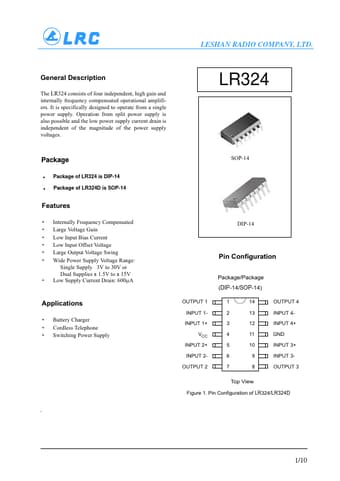

* g Battery Charger g Cordless Telephone g Switching Power Supply SOP-14 DIP-14 Pin Configuration Package/Package (DIP-14/SOP-14) OUTPUT 1 1 14 OUTPUT 4 INPUT 1- 2 13 INPUT 4- INPUT 1+ 3 12 INPUT 4+ VCC 4 11 GND INPUT 2+ 5 10 INPUT 3+ INPUT 2- 6 9 INPUT 3- OUTPUT 2 7 8 OUTPUT 3 Top View
