LR358

High gain and internally frequency compensated operational amplifiers

LR358 Features

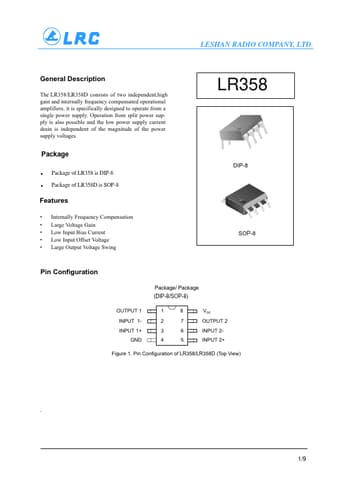

* g Internally Frequency Compensation g Large Voltage Gain g Low Input Bias Current g Low Input Offset Voltage g Large Output Voltage Swing LR358 DIP-8 SOP-8 Pin Configuration Package/ Package (DIP-8/SOP-8) OUTPUT 1 INPUT 1INPUT 1+ GND 18 27 36 45 Vcc OUTPUT 2 INPUT 2INPUT 2+ Figure 1. Pin Conf

LR358 General Description

The LR358/LR358D consists of two independent,high gain and internally frequency compensated operational amplifiers, it is specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magni.

LR358 Datasheet (190.50 KB)

Preview of LR358 PDF

Datasheet Details

Part number:

LR358

Manufacturer:

LRC

File Size:

190.50 KB

Description:

High gain and internally frequency compensated operational amplifiers.
