RL152G, RL151G Datasheet - LRC

RL152G 1.5A GENERAL PURPOSE GPP DIODES

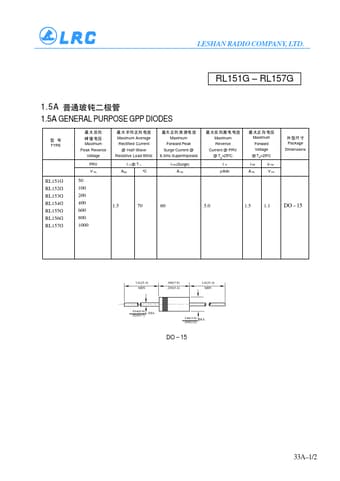

LESHAN RADIO COMPANY, LTD. RL151G RL157G 1.5A 1.5A GENERAL PURPOSE GPP DIODES TYPE RL151G RL152G RL153G RL154G RL155G RL156G RL157G Maximum Peak Reverse Voltage PRV V PK 50 100 200 400 600 800 1000 Maximum Average Rectified Current @ Half-Wave Resistive Load 60Hz I O@ T L AAV ºC 1.5 70 Maximum Forward Peak Surge Current @ 8.3ms Superimposed I FM (Surge) A PK Maximum Reverse Current @ PRV @ TA=25ºC IR µAdc 60 5.0 Maximum Forward Voltage @ TA=25ºC I FM V FM A PK V PK 1.5 1.1.

RL151G-LRC.pdf

RL152G Datasheet Preview — This datasheet PDF includes multiple part numbers: RL152G, RL151G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RL152G, RL151G

Manufacturer:

LRC

File Size:

51.54 KB

Description:

1.5a general purpose gpp diodes.

Note:

This datasheet PDF includes multiple part numbers: RL152G, RL151G.
Please refer to the document for exact specifications by model.
