RL154, RL151 Datasheet - LGE

RL154, RL151, General Purpose Silicon Rectifier

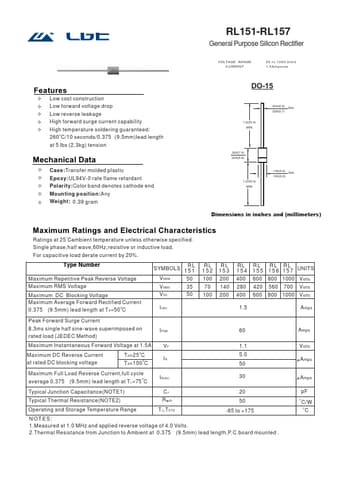

RL151-RL157 General Purpose Silicon Rectifier VOLTAGE RANGE CURRENT 50 to 1000 Volts 1.5Amperes .

RL151-LGE.pdf

RL154 Datasheet Preview — This datasheet PDF includes multiple part numbers: RL154, RL151. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RL154, RL151

Manufacturer:

LGE

File Size:

138.93 KB

Description:

General Purpose Silicon Rectifier

Note:

This datasheet PDF includes multiple part numbers: RL154, RL151.
Please refer to the document for exact specifications by model.

Features

* Low cost construction Low forward voltage drop Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260oC/10 seconds/0.375 (9.5mm)lead length at 5 lbs (2,3kg) tension Mechanical Data Case:Transfer molded plastic Epoxy:UL94V-0 rate flame retardant Polarity:
