SB8100-E, SB820-E - Schottky Barrier Rectifiers

SB8100-E Description

SB820-E thru SB8100-E Schottky Barrier Rectifiers Reverse Voltage 20 to 100V .

SB8100-E Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals
* IEC61000-4-2 ESD Air Contact≥±15KV Mechanical Data Case : JEDEC DO-201AD, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB8100-E, SB820-E. Please refer to the document for exact specifications by model.

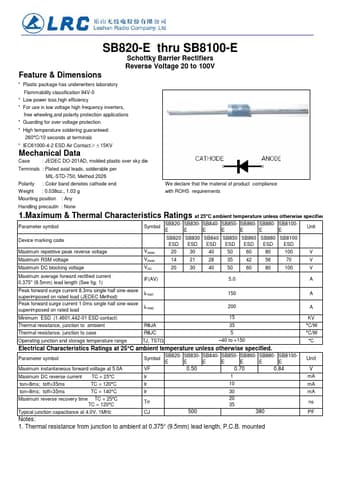

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB8100-E, SB820-E
Manufacturer
LRC
File Size
199.43 KB
Datasheet
SB820-E-LRC.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SB8100-E, SB820-E.
Please refer to the document for exact specifications by model.
