SB820 - Schottky Barrier Rectifiers

SB820 Description

SB820 thru SB8100 Schottky Barrier Rectifiers Reverse Voltage 20 to 100V .

SB820 Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case : JEDEC DO-201AD, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode

📥 Download Datasheet

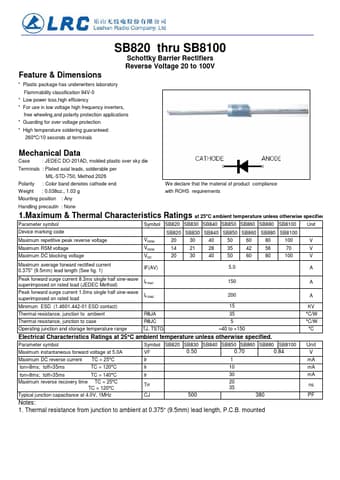

Preview of SB820 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB820
Manufacturer
LRC
File Size
199.30 KB
Datasheet
SB820-LRC.pdf
Description
Schottky Barrier Rectifiers
