LS7232ND

TOUCH CONTROL LAMP DIMMER

LS7232ND Features

* Phase-lock loop synchronization allows use in Wall Switch applications.

* Provides brightness control of incandescent lamps with touch plates or pushbutton switches.

* Controls the duty cycle from 23% to 88% (conduction angles for AC half-cycles between 41˚ and 158˚, respe

LS7232ND General Description

LS7232ND is a MOS integrated circuit designed to control brightness of incandescent lamps. The output of this IC controls the brightness of a lamp by controlling the firing angle of a triac connected in series with the lamp. All internal timings are synchronized with the line frequency by means of .

LS7232ND Datasheet (45.61 KB)

Preview of LS7232ND PDF

Datasheet Details

Part number:

LS7232ND

Manufacturer:

LSI Computer Systems

File Size:

45.61 KB

Description:

Touch control lamp dimmer.

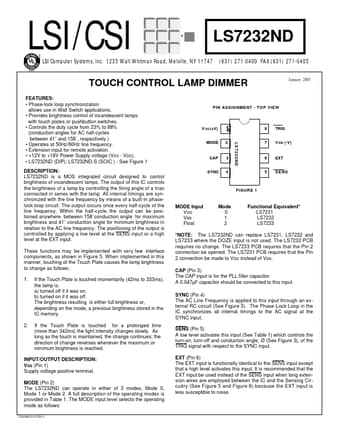

LSI/CSI UL ® LS7232ND (631) 271-0400 FAX (631) 271-0405 January 2003 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 T.
