LS7232NT Datasheet - LSI Computer Systems

PROXIMITY/TOUCH CONTROL HALOGEN LAMP DIMMER

LS7232NT Features

* Control of incandescent and transformer coupled halogen lamps.

* No-Touch lamp control through optical sensing

* PLL synchronization of AC for wall switch application.

* Extension input for remote control

* Safety-shutdown for transformer malfunction.

LS7232NT General Description

LS7232NT is a CMOS integrated circuit designed for brightness control of incandescent lamps or tranformer coupled low voltage halogen lamps. The brightness is controlled by controlling the firing angle of a triac in series with the lamp and triggered by the LS7232NT. A Phase-Locked-Loop keeps the L.

LS7232NT Datasheet (55.17 KB)

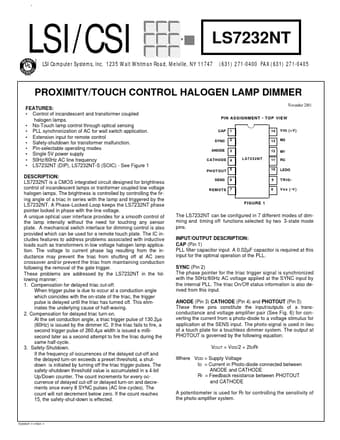

LS7232NT Datasheet Preview — Preview of LS7232NT PDF

Datasheet Details

Part number:

LS7232NT

Manufacturer:

LSI Computer Systems

File Size:

55.17 KB

Description:

Proximity/touch control halogen lamp dimmer.
LSI/CSI UL ® LS7232NT (631) 271-0400 FAX (631) 271-0405 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 PROXIMITY/TOUC.
