LS7234

TOUCH CONTROL LAMP DIMMER

LS7234 Features

* Phase-lock loop synchronization allows use in Wall Switch applications.

* Provides brightness control of incandescent lamps with touch plates or mechanical switches.

* Controls the "duty cycle" from 23% to 88% (conduction angles for AC half-cycles between 41˚ and 158˚, res

LS7234 General Description

LS7231 through LS7234 are a series of monolithic, MOS integrated circuits designed for the control of brightness of incandescent lamps. The outputs of these ICs control the brightness of a lamp by controlling the firing angle of a triac connected in series with the lamp. All internal timings are sy.

LS7234 Datasheet (70.45 KB)

Preview of LS7234 PDF

Datasheet Details

Part number:

LS7234

Manufacturer:

LSI Computer Systems

File Size:

70.45 KB

Description:

Touch control lamp dimmer.
LSI/CSI UL ® LS7231-7234 (631) 271-0400 FAX (631) 271-0405 December 2000 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A380.

📁 Related Datasheet

LS7231 - TOUCH CONTROL LAMP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7231-7234 (631) 271-0400 FAX (631) 271-0405 December 2000 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A380.

LS7231-7234 - TOUCH CONTROL LAMP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7231-7234 (631) 271-0400 FAX (631) 271-0405 December 2000 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A380.

LS7232 - Touch indoor stepless dimming control IC (ETC)
ADD TEL 0756 8554150 FAX 0756 E-mail changzhouyan@163. 13112386390 6832290 LS7232 LS7232 IC LSI LS7232 D PMOS 8 39ms----399ms 0.4 TA=25 VSS=0.

LS7232ND - TOUCH CONTROL LAMP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7232ND (631) 271-0400 FAX (631) 271-0405 January 2003 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 T.

LS7232NT - PROXIMITY/TOUCH CONTROL HALOGEN LAMP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7232NT (631) 271-0400 FAX (631) 271-0405 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 PROXIMITY/TOUC.

LS7233 - TOUCH CONTROL LAMP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7231-7234 (631) 271-0400 FAX (631) 271-0405 December 2000 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A380.

LS7237 - TOUCH CONTROL LAMP STEP DIMMER (LSI)
LSI/CSI UL ® LS7237 (631) 271-0400 FAX (631) 271-0405 April 1995 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 TOUCH.

LS7237 - TOUCH CONTROL LAMP STEP DIMMER (LSI Computer Systems)
LSI/CSI UL ® LS7237 (631) 271-0400 FAX (631) 271-0405 April 1995 LSI Computer Systems, Inc. 1235 Walt Whitman Road, Melville, NY 11747 A3800 TOUCH.

TAGS

LS7234 TOUCH CONTROL LAMP DIMMER LSI Computer Systems

Image Gallery

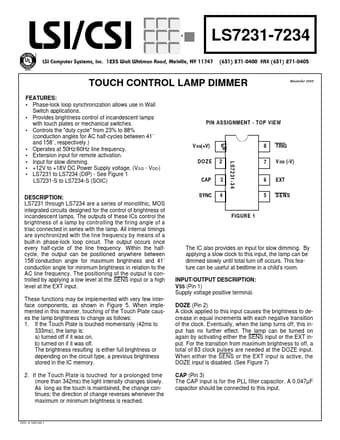

LS7234 Datasheet Preview Page 2 LS7234 Datasheet Preview Page 3
