LUH100G1201Z Datasheet, Module, LSIS

LUH100G1201Z Features

  • Module
  • Soft Punch Through - Low Loss (SPT+) Technology SUSPM™ 1200V 100A 2-Pack IGBT Module Preliminary data
  • - Highly rugged SPT+ design Free Wheeli

PDF File Details

Part number:

LUH100G1201Z

Manufacturer:

LSIS

File Size:

851.56kb

Download:

📄 Datasheet

Description:

1200v 100a 2-pack igbt module. Pin Number 1 2 3 4 5 6 7 Pin Name C2E1 E2 C1 G1 E1 G2 E2 Pin Description Output Negative DC Link Output Positive DC Link Output Gate

Datasheet Preview: LUH100G1201Z 📥 Download PDF (851.56kb)

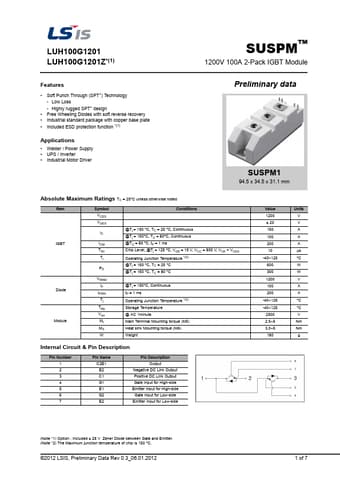

Page 2 of LUH100G1201Z Page 3 of LUH100G1201Z

LUH100G1201Z Application

  • Applications
  • Welder / Power Supply UPS / Inverter Industrial Motor Driver SUSPM1 94.5 x 34.5 x 31.1 mm Absolute Maxi
