LUH100G1202Z, LUH100G1202 Datasheet - LSIS

LUH100G1202Z, LUH100G1202, IGBT

LUH100G1202 LUH100G1202Z *(1) SUSPM™ 1200V 100A 2-Pack IGBT Module .

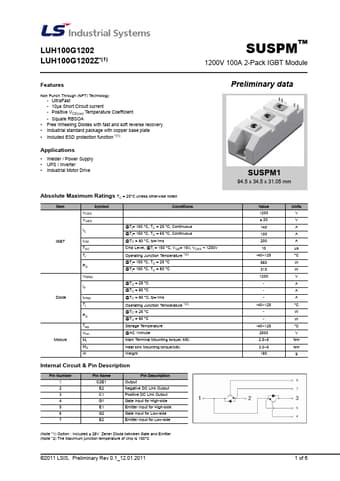

datasheet Preview Page 1 from Datasheet4u.com

LUH100G1202-LSIS.pdf

LUH100G1202Z Datasheet Preview — This datasheet PDF includes multiple part numbers: LUH100G1202Z, LUH100G1202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LUH100G1202Z, LUH100G1202

Manufacturer:

LSIS

File Size:

741.59 KB

Description:

IGBT

Note:

This datasheet PDF includes multiple part numbers: LUH100G1202Z, LUH100G1202.
Please refer to the document for exact specifications by model.

Features

* Non Punch Through (NPT) Technology - UltraFast - 10μs Short Circuit current - Positive VCE(on) Temperature Coefficient - Square RBSOA
* Free Wheeling Diodes with fast and soft reverse recovery
* Industrial standard package with copper base plate
* Included ESD protection func

Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Drive Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj PD Tstg Viso Mt MS W Conditions @Tj= 150 °C, TC = 25 °C, Continuous @Tj= 15
