LUH100G1203Z, LUH100G1203 IGBT

Description

LUH100G1203 LUH100G1203Z *(1) SUSPM™ 1200V 100A 2-Pack IGBT Module .

📥 Download Datasheet

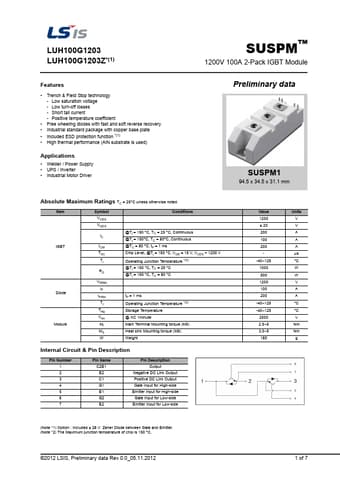

LUH100G1203Z Datasheet Preview — This datasheet PDF includes multiple part numbers: LUH100G1203Z, LUH100G1203. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LUH100G1203Z, LUH100G1203
Manufacturer: LSIS
File Size: 765.32 KB
Datasheet: LUH100G1203-LSIS.pdf
Description: IGBT
Note: This datasheet PDF includes multiple part numbers: LUH100G1203Z, LUH100G1203.
Please refer to the document for exact specifications by model.

Features

* Trench & Field Stop technology - Low saturation voltage - Low turn-off losses - Short tail current - Positive temperature coefficient
* Free wheeling diodes with fast and soft reverse recovery
* Industrial standard package with copper base plate
* Included ESD prote

Applications

* Welder / Power Supply
* UPS / Inverter
* Industrial Motor Driver Preliminary data SUSPM1 94.5 x 34.5 x 31.1 mm Absolute Maximum Ratings TC = 25°C unless otherwise noted Item IGBT Diode Module Symbol VCES VGES IC ICM TSC Tj PD VRRM IF IFRM Tj Tstg Viso Mt MS W Condition
