Sterling-LWB - Bluetooth & BLE Module

Datasheet Details

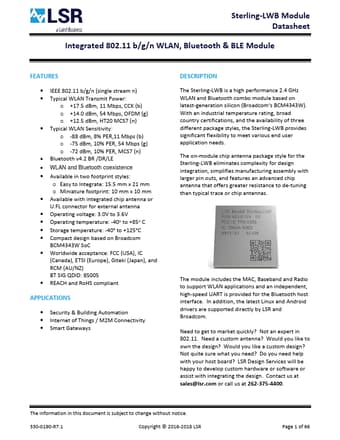

The Sterling-LWB is a high performance 2.4 GHz WLAN and Bluetooth combo module based on latest-generation silicon (Broadcom’s BCM4343W).

IEEE 802.11 b/g/n (single stream n).
Typical WLAN Transmit Power: o +17.5 dBm, 11 Mbps, CCK (b) o +14.0 dBm, 54 Mbps, OFDM (g) o +12.5 dBm, HT20 MCS7 (n).
Typical WLAN Sensitivity: o -88 dBm, 8% PER,11 Mbps (b) o -75 dBm, 10% PER, 54 Mbps (g) o -72 dBm, 10% PER, MCS7 (n).
Bluetooth v4.2 BR /DR/LE.
WLAN and Bluetooth coexistence.
Available in two footprint styles: o Easy to Integrate: 15.5 mm x 21 mm o Miniature footprint: 10 mm x 10 mm.
