STE03S03F

STE Series - 1W Single Output Surface Mount DC-DC Converter

STE03S03F Features

* Industry standard SMD package Ultra-high efficiencies to 87% Single 1kVdc Isolated Outputs Operating Temp Range

* 40oC to 85oC Internal Input and Output Filtering CECC00802 Re-flow (280 deg. C max.) 2 Year Warranty DESCRIP

STE03S03F General Description

The STE Series is a reliable high performance solution for a wide range of applications. The STE is fully encapsulated in a non-flammable plastic case (meeting UL 94V-0) and is designed to meet EN60950 and UL1950 safety standards. The devices are fully compatible with CECC00802 to 280 deg. C 12.72 .

STE03S03F Datasheet (167.33 KB)

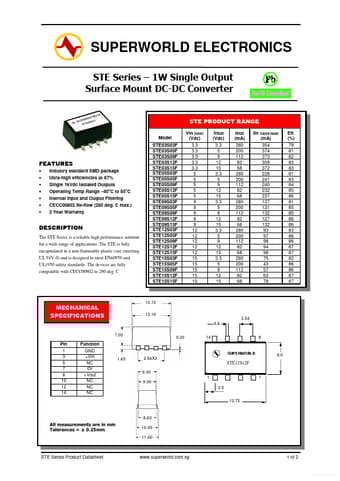

Preview of STE03S03F PDF

Datasheet Details

Part number:

STE03S03F

Manufacturer:

Superworld Electronics

File Size:

167.33 KB

Description:

Ste series - 1w single output surface mount dc-dc converter.
SUPERWORLD ELECTRONICS STE Series

* 1W Single Output Surface Mount DC-DC Converter STE PRODUCT RANGE Model STE03S03F STE03S05F STE03S09F STE0.
