STE03S15F STE Series - 1W Single Output Surface Mount DC-DC Converter

The STE Series is a reliable high performance solution for a wide range of applications. The STE is fully encapsulated in a non-flammable plastic case (meeting UL 94V-0) and is designed to meet EN60950 and UL1950 safety standards. The devices are fully compatible with CECC00802 to 280 deg. C 12.72 .

SUPERWORLD ELECTRONICS STE Series 1W Single Output Surface Mount DC-DC Converter STE PRODUCT RANGE Model STE03S03F STE03S05F STE03S09F STE03S12F STE03S15F STE05S03F STE05S05F STE05S09F STE05S12F STE05S15F STE09S03F STE09S05F STE09S09F STE09S12F STE09S15F STE12S03F STE12S05F STE12S09F STE12S12F STE12S15F STE15S03F STE15S05F STE15S09F STE15S12F STE15S15F Vin (nom) (Vdc) 3.3 3.3 3.3 3.3 3.3 5 5 5 5 5 9 9 9 9 9 12 12 12 12 12 15 15 15 15 15 Vout (Vdc) 3.3 5 9 12 15 3.3 5 9 12 15 3.3 5 9 1.

STE03S15F Features

* Industry standard SMD package Ultra-high efficiencies to 87% Single 1kVdc Isolated Outputs Operating Temp Range

* 40oC to 85oC Internal Input and Output Filtering CECC00802 Re-flow (280 deg. C max.) 2 Year Warranty DESCRIP

STE03S15F Datasheet (167.33 KB)

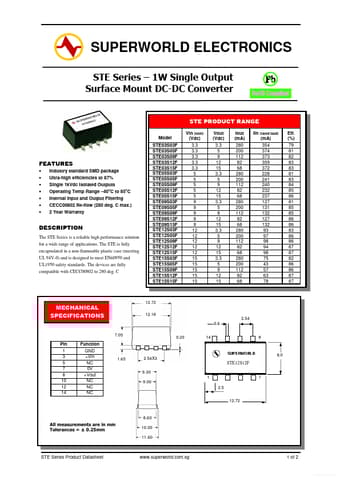

STE03S15F Datasheet Preview — Preview of STE03S15F PDF

Datasheet Details

Part number:

STE03S15F

Manufacturer:

Superworld Electronics

File Size:

167.33 KB

Description:

Ste series - 1w single output surface mount dc-dc converter.
