STE0515 - Five-Line ESD Protection Array

STE0515 Description

Five-Line ESD Protection Array Working voltage 5V .
STE0515 The STE0515 are designed by TVS device that is to protect sensitive electronics from damage or latch-up due to ESD.

STE0515 Applications

* where board space ia at a premium. STE0515 will protect up to five lines, and may be used on lines where the signal polarities swing above and below ground. STE0515 offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage without dev

📥 Download Datasheet

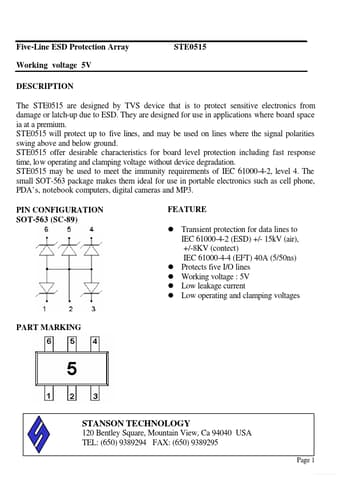

Preview of STE0515 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STE0515
Manufacturer
Stanson
File Size
107.73 KB
Datasheet
STE0515_Stanson.pdf
Description
Five-Line ESD Protection Array
