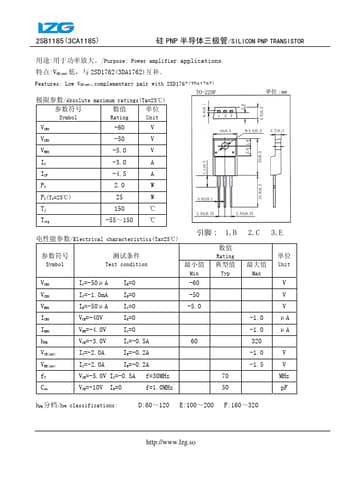

Low VCE(sat),complementary pair with 2SD1762(3DA1762). /Absolute maximum ratings(Ta=25℃)
Symbol
Rating
Unit
VCBO -60 V
VCEO -50 V
VEBO
-5.0
V
IC
-3.0
A
ICP
-4.5
A
PC 2.0 W
PC(TC=25℃)
25 W
Tj 150 ℃
Tstg -55～150 ℃
/Electrical characteristics(Ta=25℃)
Symbol
VCBO VCEO VEBO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob
Test condition
IC=-50μA IE=0
IC=-1.0mA IB=0
IE=-50μA IC=0
VCB=-40V
IE=0
VEB=-4.0V
IC=0
VCE=-3.0V
IC=-0.5A
IC=-2.0A
IB=-0.2A
IC=-2.0A
IB=-0.2A
VCE.
