PH100S48 Datasheet PDF - Lambda (PHxxxS Series) Simple Function / 50 to 600W DC-DC Converters Specs

PH100S48 - (PHxxxS Series) Simple Function / 50 to 600W DC-DC Converters

Datasheet Summary

Description

-Vin +Vin +S -S +V -V IOG TRIM CNT CS Function Negative Input Terminal Positive Input Terminal Positive Remote sense Negative Remote sense Positive Output Terminal Negative Output Terminal Inverter Good Signal Output adjustment trim pin On/Off Control Terminal Current Monitor Signal Other Lambda DC

Features

Feature Benefit High density Low component count Fixed operating frequency Variety of input voltages Smaller package size High reliability Demonstrated 5 million hours MTBF Easier system filtering Systems can operate from different input voltages Specifications 3.3V ITEMS Input range Output Voltage Adj. Range Line Regulation Load Regulation Ripple and Noise Series Operation Over Voltage Protection Overload Protection Remote On/Off Remote Sensing Parallel operation Inverter Go.

Datasheet Details

Part number	PH100S48
Manufacturer	Lambda
File Size	75.98 KB
Description	(PHxxxS Series) Simple Function / 50 to 600W DC-DC Converters
Datasheet	PH100S48 Datasheet
Additional preview pages of the PH100S48 datasheet.

📁 Similar Datasheet

PH100A280-12 - DC-DC Converters (TDK-Lambda)

PH100A280-24 - DC-DC Converters (TDK-Lambda)

PH100A280-3.3 - DC-DC Converters (TDK-Lambda)

PH100A280-48 - DC-DC Converters (TDK-Lambda)

PH100A280-5 - DC-DC Converters (TDK-Lambda)

PH101 - PHOTO DETECTOR (NEC)

PH102 - PHOTO DETECTOR (NEC)

PH102600T002-IBA - LCD Module (POWERTIP)

PH102600T003-IBA - Display Module (POWERTIP)

PH102600T005-ZZC - LCD (POWERTIP)

Full PDF Text Transcription

Click to expand full text

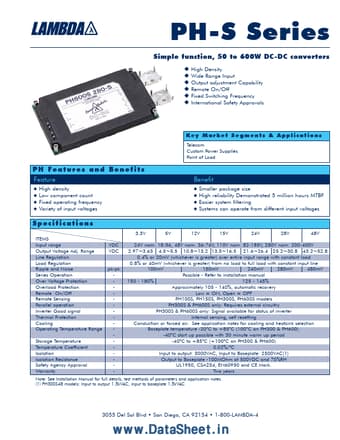

PH-S Series Simple function, 50 to 600W DC-DC converters High Density Wide Range Input Output adjustment Capability Remote On/Off Fixed Switching Frequency International Safety Approvals Key Market Segments & Applications Telecom Custom Power Supplies Point of Load PH Features and Benefits Feature Benefit High density Low component count Fixed operating frequency Variety of input voltages Smaller package size High reliability Demonstrated 5 million hours MTBF Easier system filtering Systems can operate from different input voltages Specifications 3.3V ITEMS Input range Output Voltage Adj.
