PH100A280-24 - DC-DC Converters

This page provides the datasheet information for the PH100A280-24, a member of the PH100A280-3.3-TDK DC-DC Converters family.

Datasheet Summary

Description

PH50A to 150A 25mm transverse ﬁns PH300A 25mm transverse ﬁns PH300A 38mm transverse ﬁns PH300A 38mm longitudinal ﬁns 1-800-526-2324 www.us.tdk-lambda.com/lp/ Options Suﬃx Blank /T Description M3 tapped mounting inserts 3.3mm non-threaded inserts For Additional Information, please visi

Features

200 - 425VDC Input.
Base-plate Cooled.
Full Power at 100°C base plate.
Quarter and Half Brick (300W) Footprint.
EN62477-1 (OVC III, PH300A only) Key Market Segments &.

TDK-Lambda

📥 Download Datasheet

Datasheet Details

Part number	PH100A280-24
Manufacturer	TDK-Lambda
File Size	646.56 KB
Description	DC-DC Converters
Datasheet	PH100A280-24 Datasheet
Additional preview pages of the PH100A280-24 datasheet.

📁 Similar Datasheet

PH100S48 - (PHxxxS Series) Simple Function / 50 to 600W DC-DC Converters (Lambda)
PH101 - PHOTO DETECTOR (NEC)
PH102 - PHOTO DETECTOR (NEC)
PH102600T002-IBA - LCD Module (POWERTIP)
PH102600T003-IBA - Display Module (POWERTIP)
PH102600T005-ZZC - LCD (POWERTIP)
PH102600T007-IAA01 - Display Module (POWERTIP)
PH103 - PHOTO TRANSISTOR (NEC)
PH104 - PHOTO TRANSISTOR (NEC)
PH106 - PHOTO TRANSISTOR (NEC)

Other Datasheets by TDK-Lambda

PH100A280-12 - DC-DC Converters
PH100A280-3.3 - DC-DC Converters
PH100A280-48 - DC-DC Converters
PH100A280-5 - DC-DC Converters
PH150A280-12 - DC-DC Converters
PH150A280-15 - DC-DC Converters
PH150A280-24 - DC-DC Converters
PH150A280-28 - DC-DC Converters

Full PDF Text Transcription

Click to expand full text

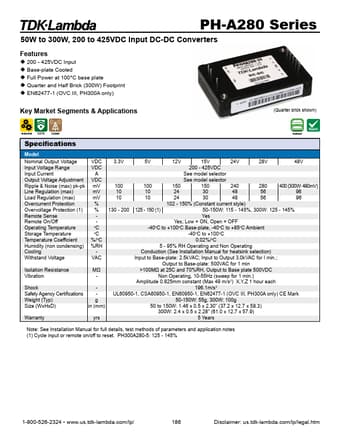

PH-A280 Series 50W to 300W, 200 to 425VDC Input DC-DC Converters Features  200 - 425VDC Input  Base-plate Cooled  Full Power at 100°C base plate  Quarter and Half Brick (300W) Footprint  EN62477-1 (OVC III, PH300A only) Key Market Segments & Applications (Quarter brick shown) Speciﬁcations Model Nominal Output Voltage VDC 3.
