PH101

PHOTO DETECTOR

PH101 Features

* o Lowcost o Low leakage current o Wide spectral response o Convenient MICRODISK package o Wide temperature range o Compact, rugged, light-weight o High sensitivity Applications o Optical switching and encoding o Intrusion alarms o Tape and card reader sensors o Level controls o Motor governors Abso

PH101 General Description

The PH101 is a miniature NPN silicon photo transistor having exceptionally stable characteristics and high illuminance sensitivity mounted in a two-terminal MICRODISK package. The spectral response, extending from 4000 to 10,000A, is compatible with daylight, tungsten and gallium arsenide sources. T.

PH101 Datasheet (120.65 KB)

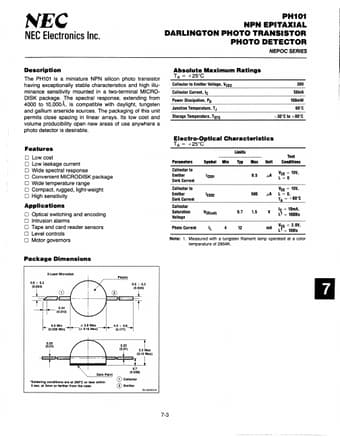

Preview of PH101 PDF

Datasheet Details

Part number:

PH101

Manufacturer:

NEC

File Size:

120.65 KB

Description:

Photo detector.
