LMG253-150XTN01 - Sunlight Readable LCD Module

Datasheet Details

Part number	LMG253-150XTN01
Manufacturer	Landmark Technology
File Size	112.85 KB
Description	Sunlight Readable LCD Module
Datasheet	LMG253-150XTN01 Datasheet
Additional preview pages of the LMG253-150XTN01 datasheet.

📁 Similar Datasheet

LMG2100R044 - 35A GaN Half-Bridge Power Stage (Texas Instruments)
LMG2610 - Integrated 650-V GaN Half Bridge (Texas Instruments)
LMG2650 - GaN power-FET half bridge (Texas Instruments)
LMG-128DI4-WUN1G - LCD (LANSER)
LMG-240EA1-WUN1G - LCD (LANSER)
LMG-SS16B80 - LCD Module (ETC)
LMG-SSC12A64 - Display Module (ETC)
LMG-SSC12A64Dxx - DOT MATRIX LIQUID CRYSTAL DISPLAY MODULE (ETC)
LMG1020 - Low-Side GaN and MOSFET Driver (Texas Instruments)
LMG1025-Q1 - Automotive Low Side GaN and MOSFET Driver (Texas Instruments)

Other Datasheets by Landmark Technology

LMG216H-150X1 - Sunlight Readable LCD Module
LMG227-104X01 - Sunlight Readable LCD
LMG241-150X02TL - Sunlight Readable LCD Module

Full PDF Text Transcription

Click to expand full text

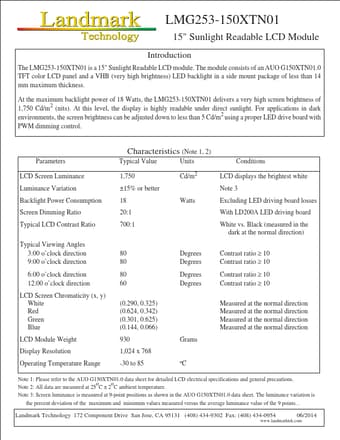

LMG253-150XTN01 15" Sunlight Readable LCD Module Introduction The LMG253-150XTN01 is a 15" Sunlight Readable LCD module. The module consists of an AUO G150XTN01.0 TFT color LCD panel and a VHB (very high brightness) LED backlight in a side mount package of less than 14 mm maximum thickness. At the maximum backlight power of 18 Watts, the LMG253-150XTN01 delivers a very high screen brightness of 1,750 Cd/m2 (nits). At this level, the display is highly readable under direct sunlight. For applications in dark environments, the screen brightness can be adjusted down to less than 5 Cd/m2 using a proper LED drive board with PWM dimming control.

Published: Mar 2, 2015 |
