LMG216H-150X1 Datasheet - Landmark Technology

LMG216H-150X1 Sunlight Readable LCD Module

LMG216H-150X1 15" Sunlight Readable LCD Module Introduction The LMG216H-150X1 is a 15" Sunlight Readable LCD module. The module consists of a ChiMei G150X1-L03 TFT color LCD panel and a VHB (very high brightness) LED backlight in a side mount package of less than 14 mm maximum thickness. At the maximum backlight power of 18.5 Watts, the LMG216H-150X1 delivers a very high screen brightness of 2,200 Cd/m2 (nits). At this level, the display is highly readable under direct sunlight. In addition, it .

LMG216H-150X1-LandmarkTechnology.pdf

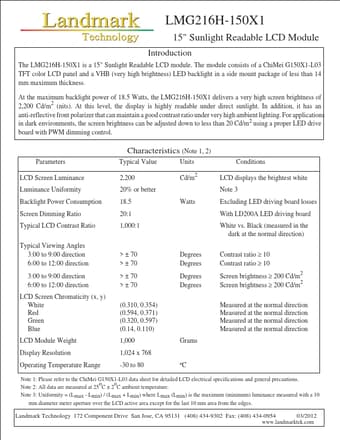

Preview of LMG216H-150X1 PDF
LMG216H-150X1 Datasheet Preview Page 2 LMG216H-150X1 Datasheet Preview Page 3

Datasheet Details

Part number:

LMG216H-150X1

Manufacturer:

Landmark Technology

File Size:

119.18 KB

Description:

Sunlight readable lcd module.
