ISPPAC80-01SI Datasheet - Lattice Semiconductor

ISPPAC80-01SI In-System Programmable Analog Circuit

The ispPAC80 is a member of the Lattice family of In-System Programmable analog circuits, digitally configured via nonvolatile E2CMOS® technology. Analog building blocks, called PACell™(s), replace traditional analog components such as opamps, eliminating the need for external resistors and capacito.

ISPPAC80-01SI Features

* IN-SYSTEM PROGRAMMABLE (ISP™) ANALOG

* Instrument Amplifier Gain Stage

* Precision Active Filtering (50kHz to 500kHz)

* Continuous-Time Fifth Order Low Pass Topology

* Dual, A/B Configuration Memory

* Non-Volatile E2CMOS Cells

* IEEE 1149.1 J

ISPPAC80-01SI_LatticeSemiconductor.pdf

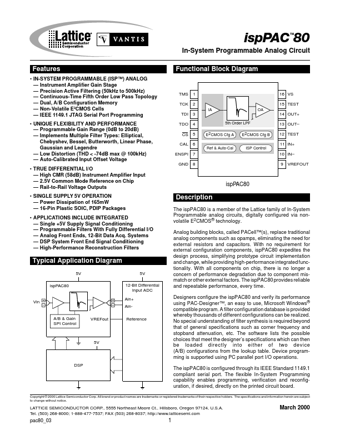

ISPPAC80-01SI Datasheet Preview — Preview of ISPPAC80-01SI PDF

Datasheet Details

Part number:

ISPPAC80-01SI

Manufacturer:

Lattice Semiconductor

File Size:

342.88 KB

Description:

In-system programmable analog circuit.
