ISPPAC81 - In-System Programmable Analog Circuit

Product Overview

Lattice Semiconductor

Part number	ISPPAC81
Manufacturer	Lattice Semiconductor
File Size	440.85 KB
Description	In-System Programmable Analog Circuit
Datasheet	ISPPAC81 Datasheet

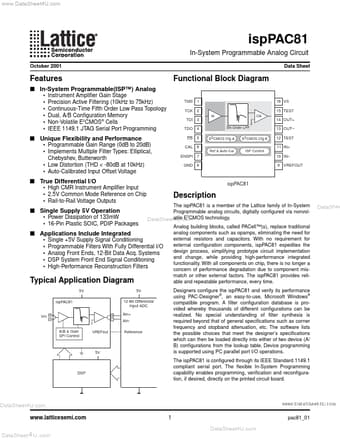

Additional preview pages of the ISPPAC81 datasheet.

The ispPAC81 is a member of the Lattice family of In-System Programmable analog circuits, digitally conﬁgured via nonvolatile E2CMOS technology.

In-System Programmable(ISP™) Analog.
Instrument Ampliﬁer Gain Stage Precision Active Filtering (10kHz to 75kHz) Continuous-Time Fifth Order Low Pass Topology Dual, A/B Conﬁguration Memory Non-Volatile E2CMOS® Cells IEEE 1149.1 JTAG Serial Port Programming Functional Block Diagram TMS TCK TDI TDO CS CAL ENSPI GND 1 2 IA OA 16 VS 15 TEST 14 OUT+ 5th Order LPF E2CMOS Cfg A Ref & Auto-Cal E2CMOS Cfg B ISP Control 3 4 5 6 7 8 13 OUT.
