LC4128V-75T144C, LC4256V, Super Fast High Density PLDs

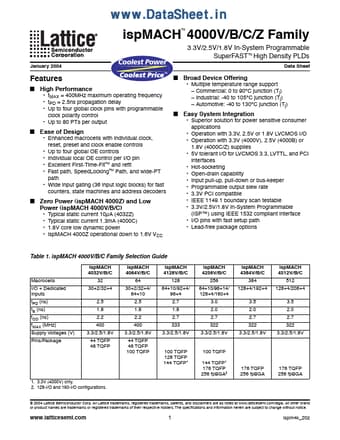

ispMACH 4000V/B/C/Z Family January 2004 TM Coolest Power C TM 3.3V/2.5V/1.8V In-System Programmable SuperFAST TM High Density PLDs Data Sheet Feat.

LC4256V_LatticeSemiconductor.pdf

LC4128V-75T144C Datasheet Preview — This datasheet PDF includes multiple part numbers: LC4128V-75T144C, LC4256V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LC4128V-75T144C, LC4256V

Manufacturer:

Lattice Semiconductor

File Size:

825.00 KB

Description:

Super Fast High Density PLDs

Note:

This datasheet PDF includes multiple part numbers: LC4128V-75T144C, LC4256V.
Please refer to the document for exact specifications by model.

Features

* High Performance
* Broad Device Offering
* fMAX = 400MHz maximum operating frequency
* tPD = 2.5ns propagation delay
* Up to four global clock pins with programmable clock polarity control
* Up to 80 PTs per output
* Multiple temperature range sup

Applications

* Operation with 3.3V, 2.5V or 1.8V LVCMOS I/O
* Operation with 3.3V (4000V), 2.5V (4000B) or 1.8V (4000C/Z) supplies
* 5V tolerant I/O for LVCMOS 3.3, LVTTL, and PCI interfaces
* Hot-socketing
* Open-drain capability
* Input pull-up, pull-down or bus-
