PALLV16V8Z-20PI Low Voltage/ Zero Power 20-Pin EE CMOS Universal Programmable Array Logic

The PALLV16V8 is an advanced PAL device built with low-voltage, high-speed, electrically-erasable CMOS technology. It is functionally compatible with all 20-pin GAL devices. The macrocells provide a universal device architecture. The PALLV16V8 will directly replace the PAL16R8, with the exception of.
FINAL COM’L:-10 IND:-20 PALLV16V8-10 and PALLV16V8Z-20 Low Voltage, Zero Power 20-Pin EE CMOS Universal Programmable Array Logic DISTINCTIVE CHARACTERISTICS x Low-voltage operation, 3.3 V JEDEC compatible x x x x x x x x x x x x VCC = +3.0 V to +3.6 V Pin and function compatible with all 20-pin PAL® devices Electrically-erasable CMOS technology provides reconfigurable logic and full testability Direct plug-in replacement for the PAL16R8 series Designed to interface with both 3.3-V a.

PALLV16V8Z-20PI Datasheet (425.99 KB)

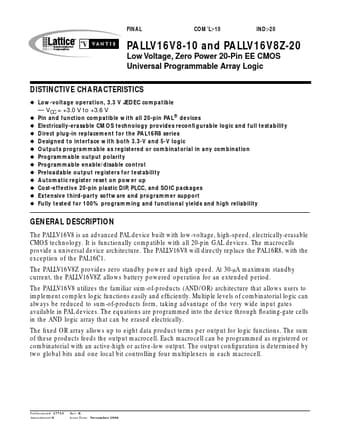

Preview of PALLV16V8Z-20PI PDF

Datasheet Details

Part number:

PALLV16V8Z-20PI

Manufacturer:

Lattice Semiconductor

File Size:

425.99 KB

Description:

Low voltage/ zero power 20-pin ee cmos universal programmable array logic.
