PALLV22V10Z-25 Zero-Power 24-Pin EE CMOS Versatile PAL Device

The PALLV22V10Z is an advanced PAL device built with low-voltage, zero-power, electrically-erasable CMOS technology. It provides user-programmable logic for replacing conventional zero-power CMOS SSI/MSI gates and flip-flops at a reduced chip count. The PALLV22V10Z provides low voltage and zero stan.

FINAL IND: -25 PALLV22V10Z-25 Low-Voltage, Zero-Power 24-Pin EE CMOS Versatile PAL Device DISTINCTIVE CHARACTERISTICS s Low-voltage operation, 3.3 V JEDEC compatible s Zero-power CMOS technology 30 µA standby current 25-ns propagation delay (tPD) s Unused product term disable for reduced power consumption s Industrial operating conditions TA = 40°C to +85°C s 3.3-V (CMOS) and 5-V (CMOS and TTL) compatible inputs and I/O s Electrically-erasable technology .

PALLV22V10Z-25 Features

* of the PALCE22V10. In addition, the PALLV22V10Z has zero standby power and unused product term disable. The PALLV22V10Z allows the systems engineer to implement the design on-chip, by programming EE cells to configure AND and OR gates within the device, according to the desired logic function. Compl

PALLV22V10Z-25 Datasheet (161.59 KB)

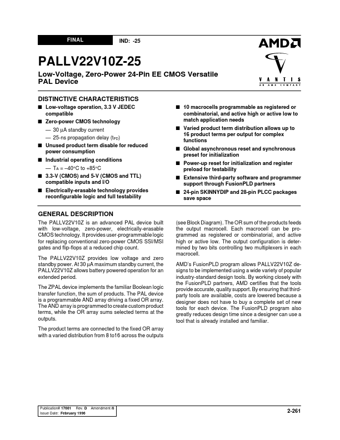

PALLV22V10Z-25 Datasheet Preview — Preview of PALLV22V10Z-25 PDF

Datasheet Details

Part number:

PALLV22V10Z-25

Manufacturer:

Advanced Micro Devices

File Size:

161.59 KB

Description:

Zero-power 24-pin ee cmos versatile pal device.
