PALLV22V10Z - Low-Voltage (Zero Power) 24-Pin EE CMOS Versatile PAL Device

Product Overview

Lattice Semiconductor

Part number	PALLV22V10Z
Manufacturer	Lattice Semiconductor
File Size	265.80 KB
Description	Low-Voltage (Zero Power) 24-Pin EE CMOS Versatile PAL Device
Datasheet	PALLV22V10Z Datasheet

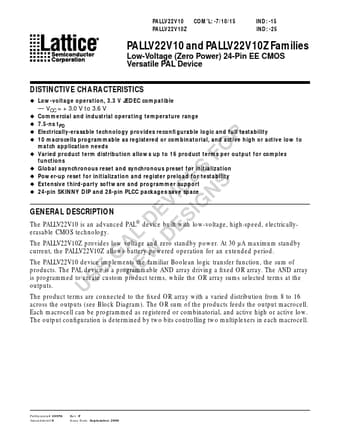

Additional preview pages of the PALLV22V10Z datasheet.

The PALLV22V10 is an advanced PAL® device built with low-voltage, high-speed, electricallyerasable CMOS technology.

of the PALCE22V10. The PALLV2210Z is the low-voltage, zero-power version of the PALCE22V10. It has all the architectural features of the PALCE22V10. In addition, the PALLV22V10Z has zero standby power and an unused product term disable feature. The PALLV22V10 allows the systems engineer to implement a design on-chip by programming EE cells to conﬁgure AND and OR gates within the device, according to the desired logic function. Complex interconnections between gates, which previously required tim.
