2096VE Datasheet - LatticeSemiconductor

3.3VIn-SystemProgrammableSuperFASTHighDensityPLD

2096VE Features

* SuperFAST HIGH DENSITY PROGRAMMABLE LOGIC

* 4000 PLD Gates

* 96 I/O Pins, Six Dedicated Inputs

* 96 Registers

* High Speed Global Interconnect

* Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

* Small Logic Block S

2096VE General Description

The ispLSI 2096VE is a High Density Programmable Logic Device containing 96 Registers, six Dedicated Input pins, three Dedicated Clock Input pins, two dedicated Global OE input pins and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements. The ispLSI.

2096VE Datasheet (160.58 KB)

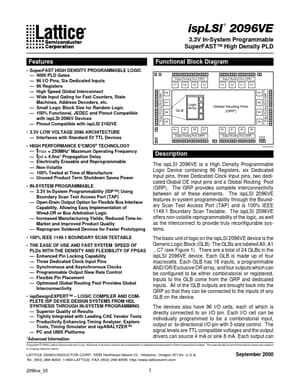

2096VE Datasheet Preview — Preview of 2096VE PDF

Datasheet Details

Part number:

2096VE

Manufacturer:

LatticeSemiconductor

File Size:

160.58 KB

Description:

3.3vin-systemprogrammablesuperfasthighdensitypld.
