2090-R - PLL

2090-R Description

.
The plerowTM PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

2090-R Features

* +3 dBm Output Level at 2090 MHz
* 2nd Harmonic : < -30 dBc
* Spurious Level : < -70 dBc
* Lock Time : < 10ms

📥 Download Datasheet

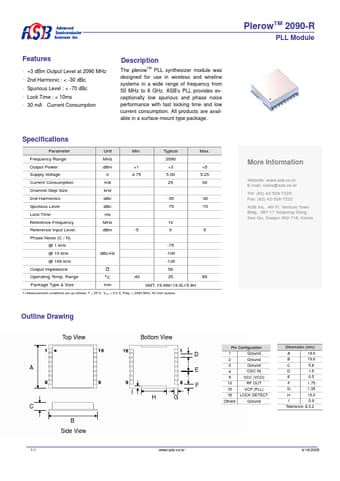

Preview of 2090-R PDF

Datasheet Details

Part number
2090-R
Manufacturer
ASB
File Size
71.64 KB
Datasheet
2090-R-ASB.pdf
Description
PLL
